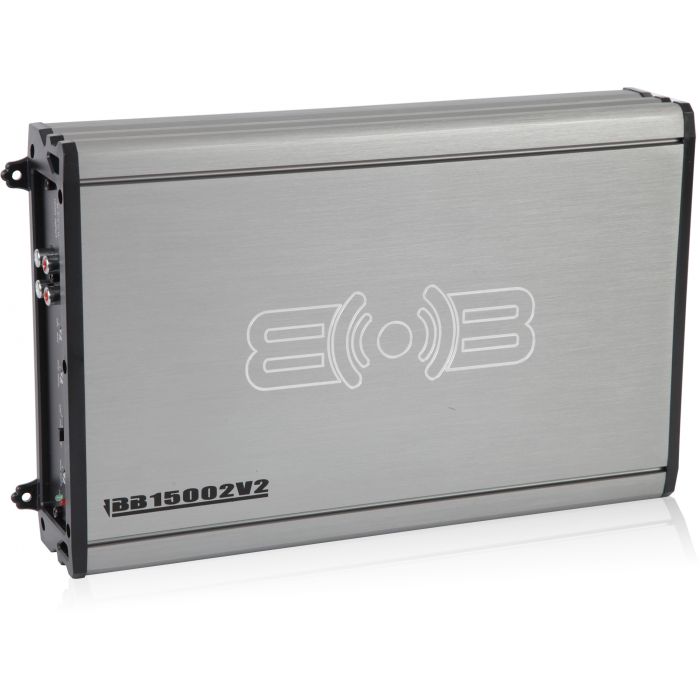

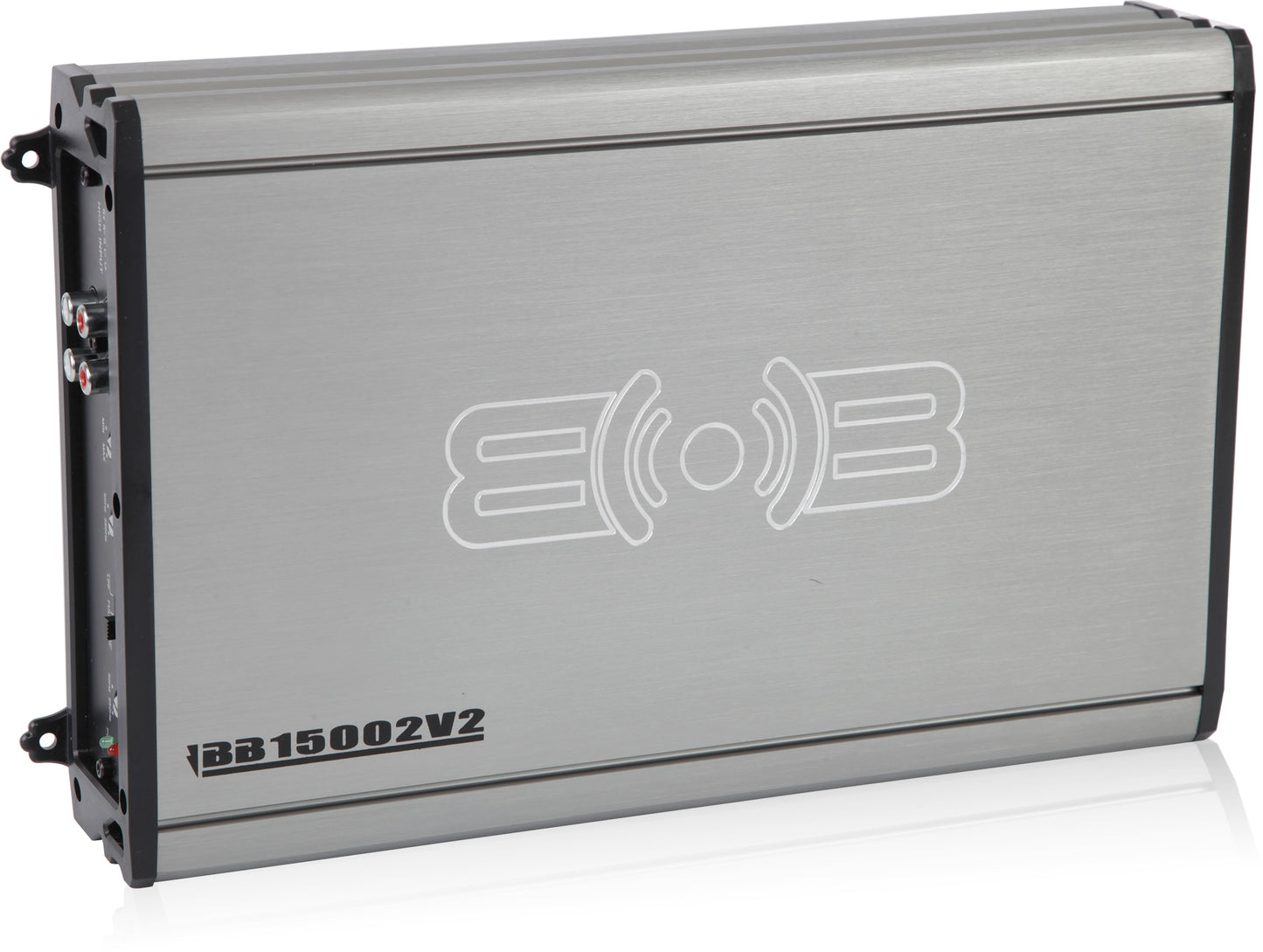

BB15002v2 | 1500W Peak BB-Series Full Range Class A/B 2-Channel Amplifier

Product Details:

• Belva BB Series 2-Channel Class A/B Amplifier
• RMS Power Rating:
• 4 ohms: 170 watts x 2 chan.
• 2 ohms: 300 watts x 2 chan.
• Bridged: 600 watts x 1 chan.
• Max power output: 1500 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators

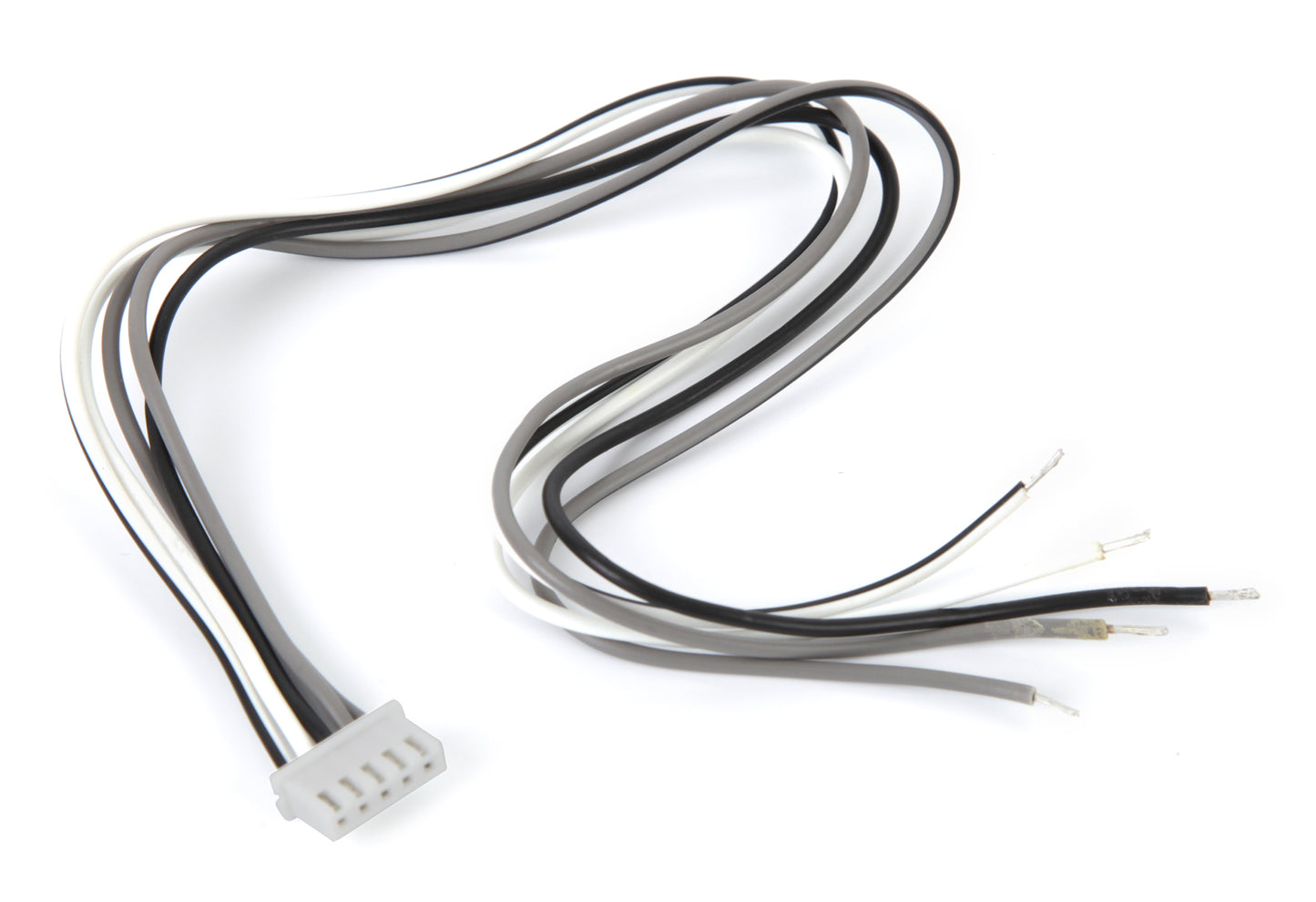

• High-level speaker inputs
• Preamp RCA outputs to daisy chain multiple amps
• Heavy duty aluminum alloy heat-sink
• 3-way protection circuitry (thermal, overload, and speaker short protection)

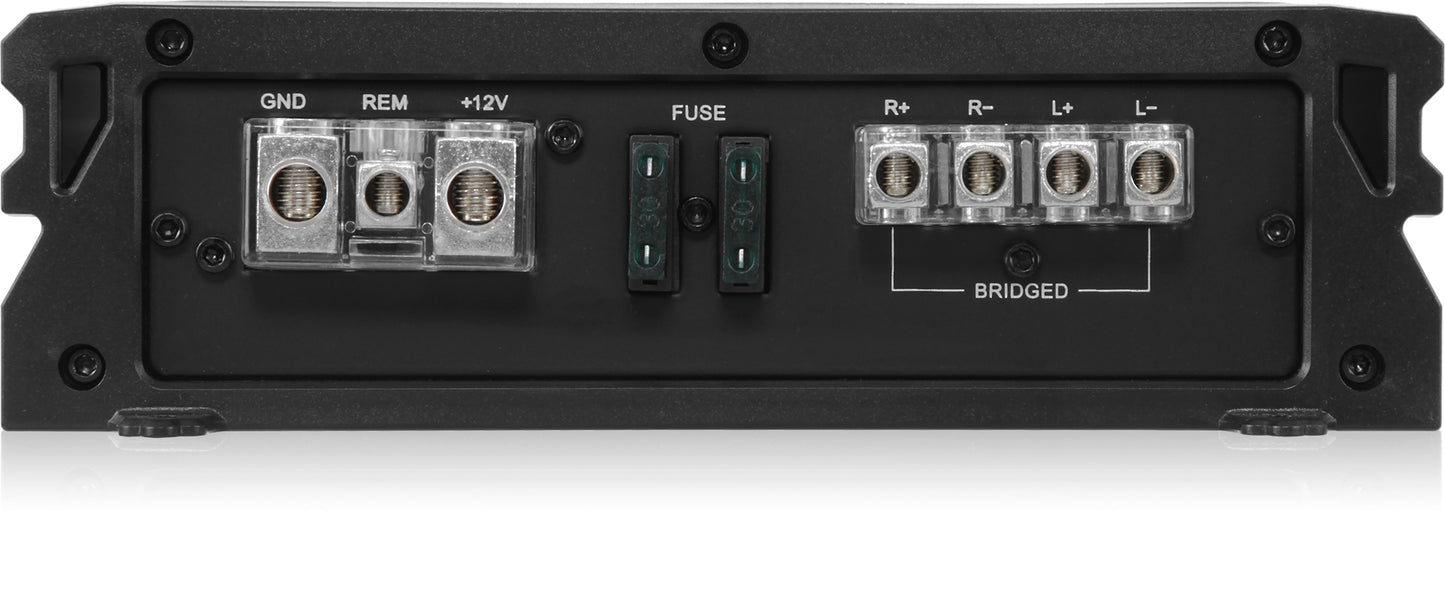

• Nickel plated RCA, Speaker and Power connections
• Input sensitivity: 200mV - 5V

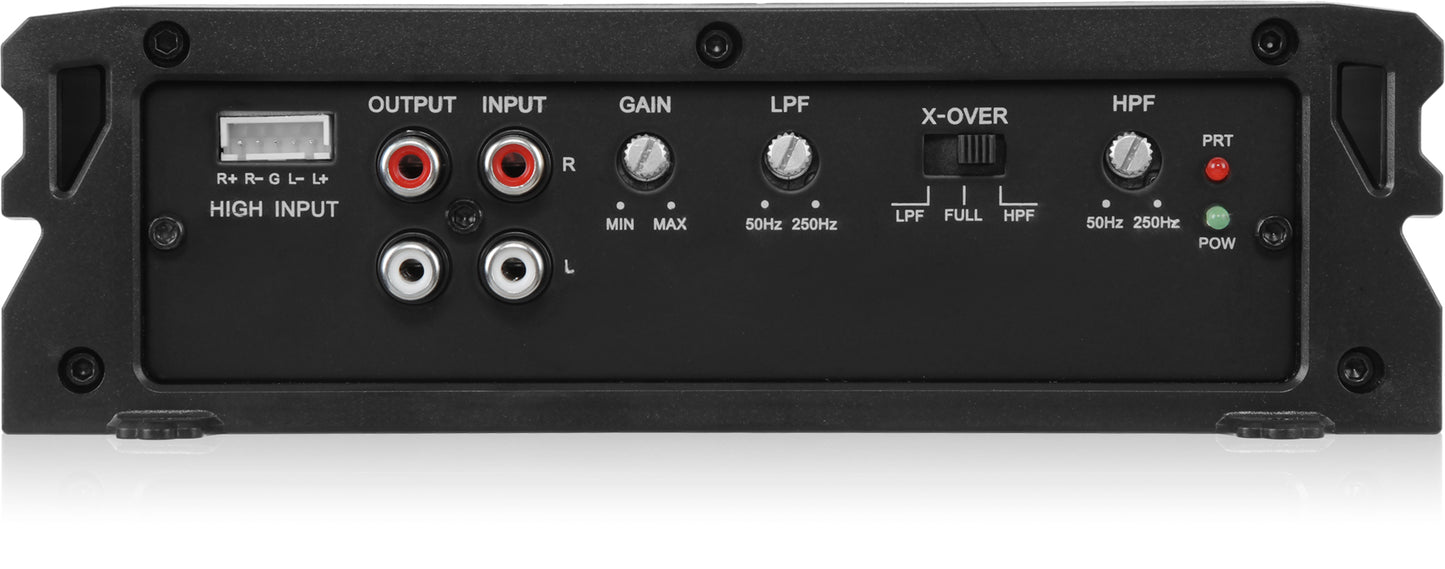

• Selectable crossover modes: LPF / FULL / HPF
• Variable high-pass filter: 50 - 250 Hz
• Variable low-pass filter: 50 - 250 Hz
• Total Harmonic Distortion (THD): <1.0%
• Frequency response: 15-20,000 Hz
• Signal to Noise Ratio: 86dB @ 1W

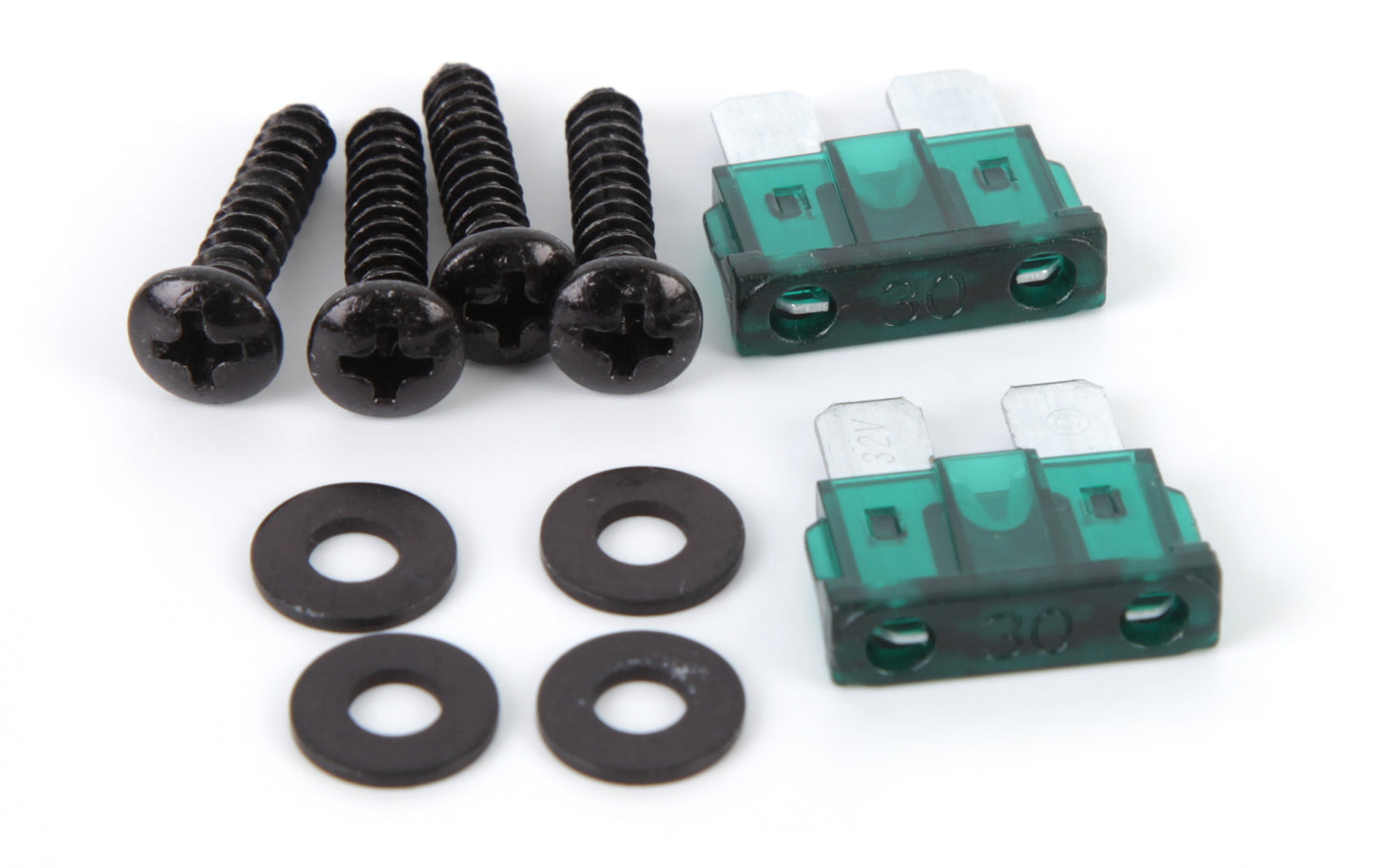

• Fuse Rating: 30 A x 2
• 4 gauge power and ground wiring is recommended for installation
• Dimensions: 12.25"W x 8"D x 2.25"H
