Product Details:

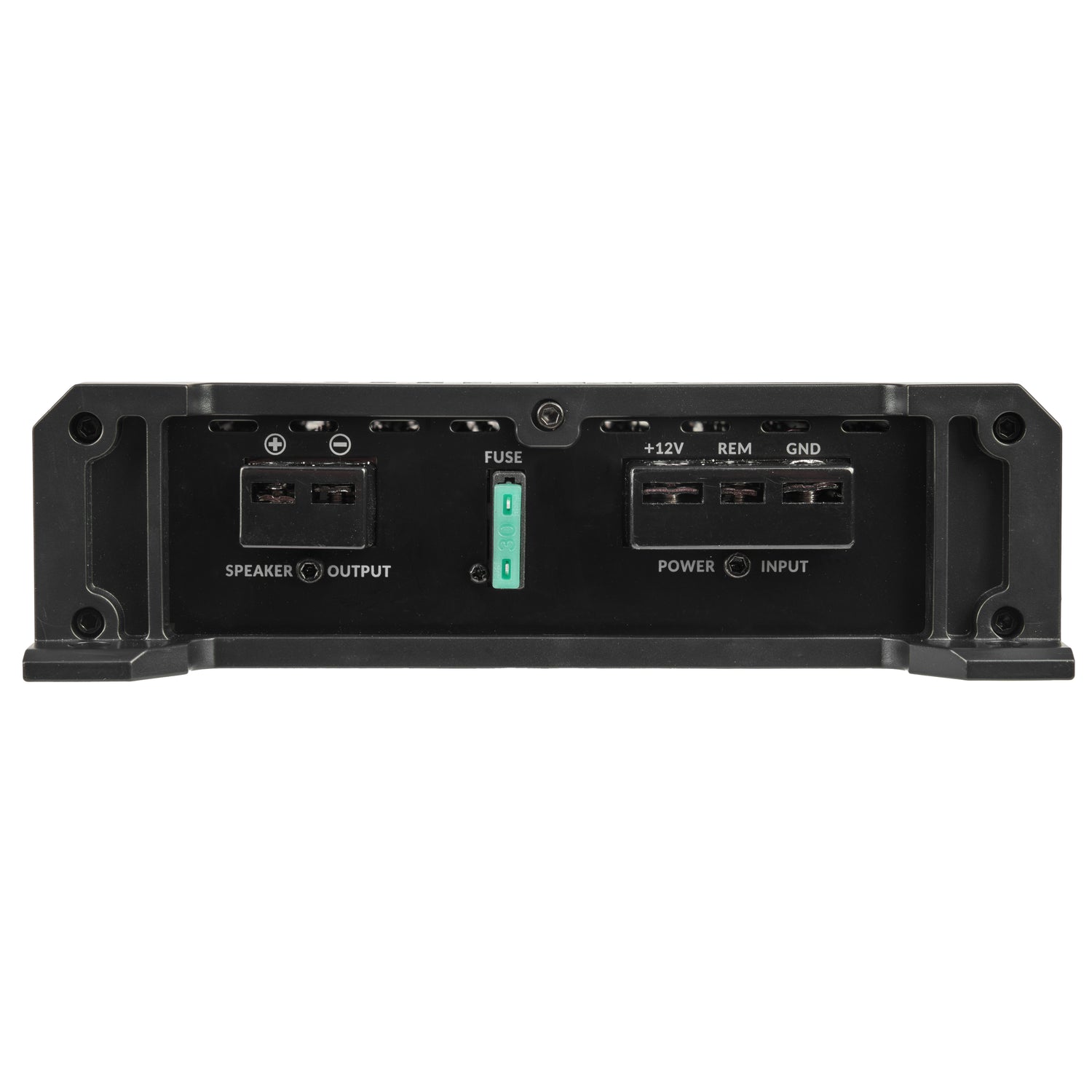

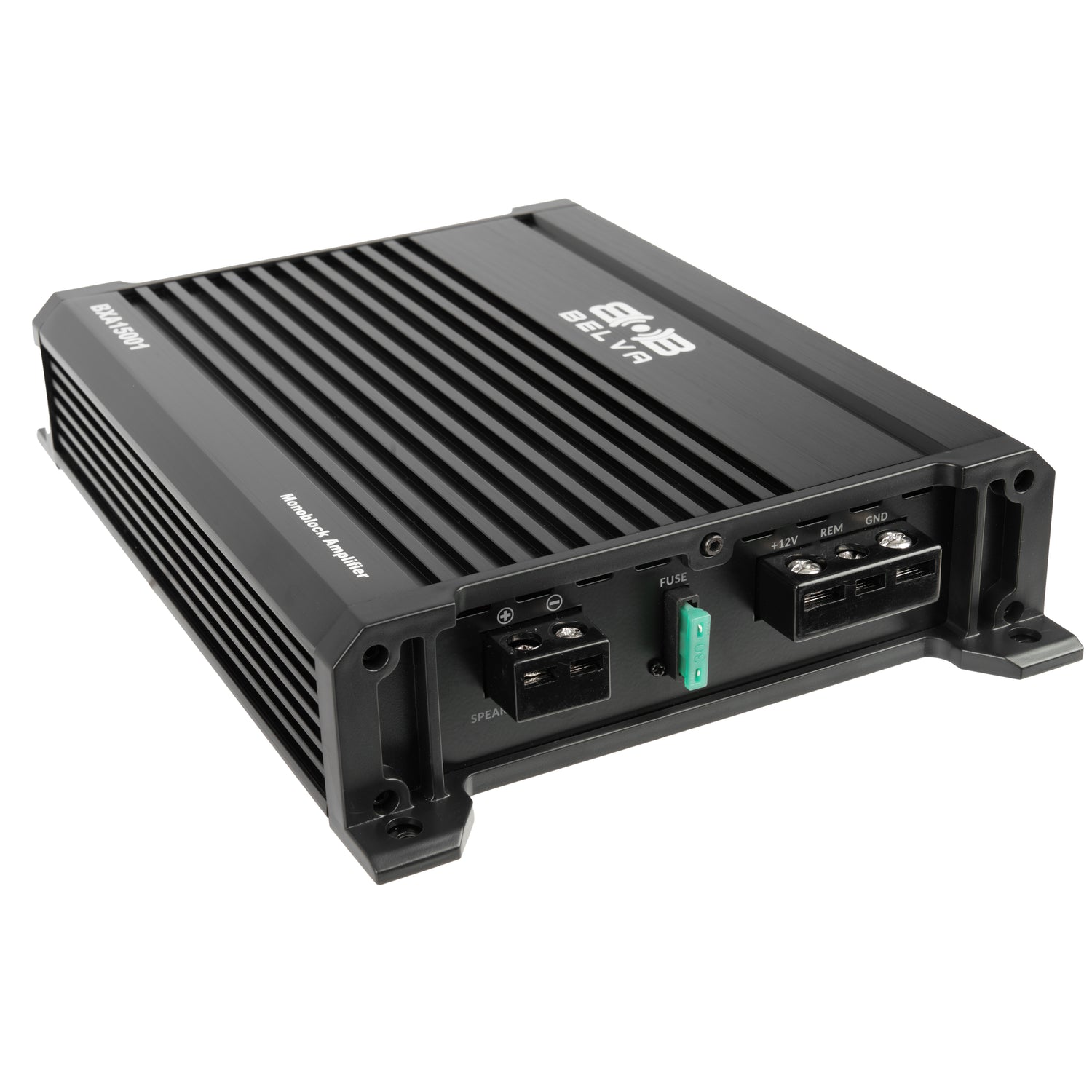

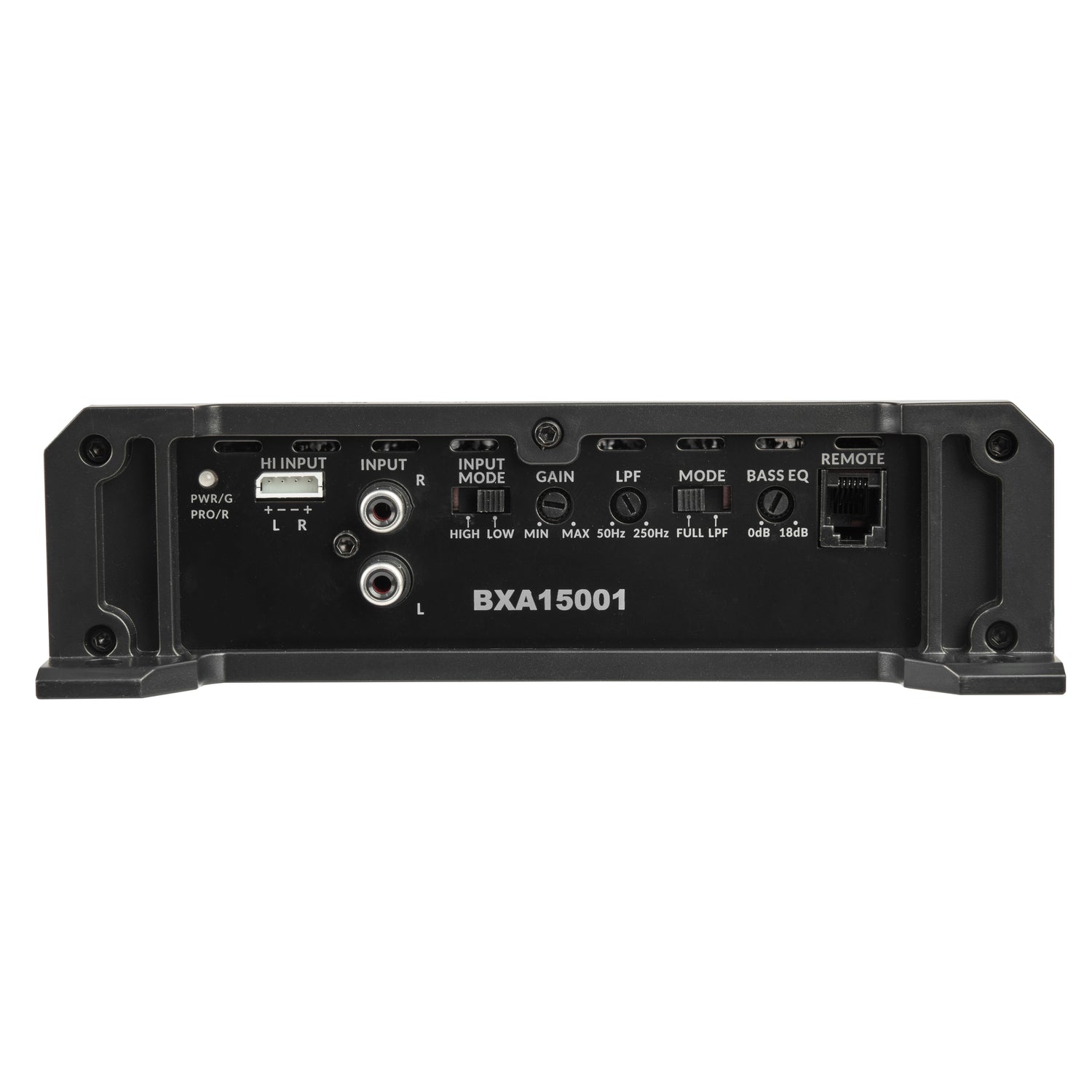

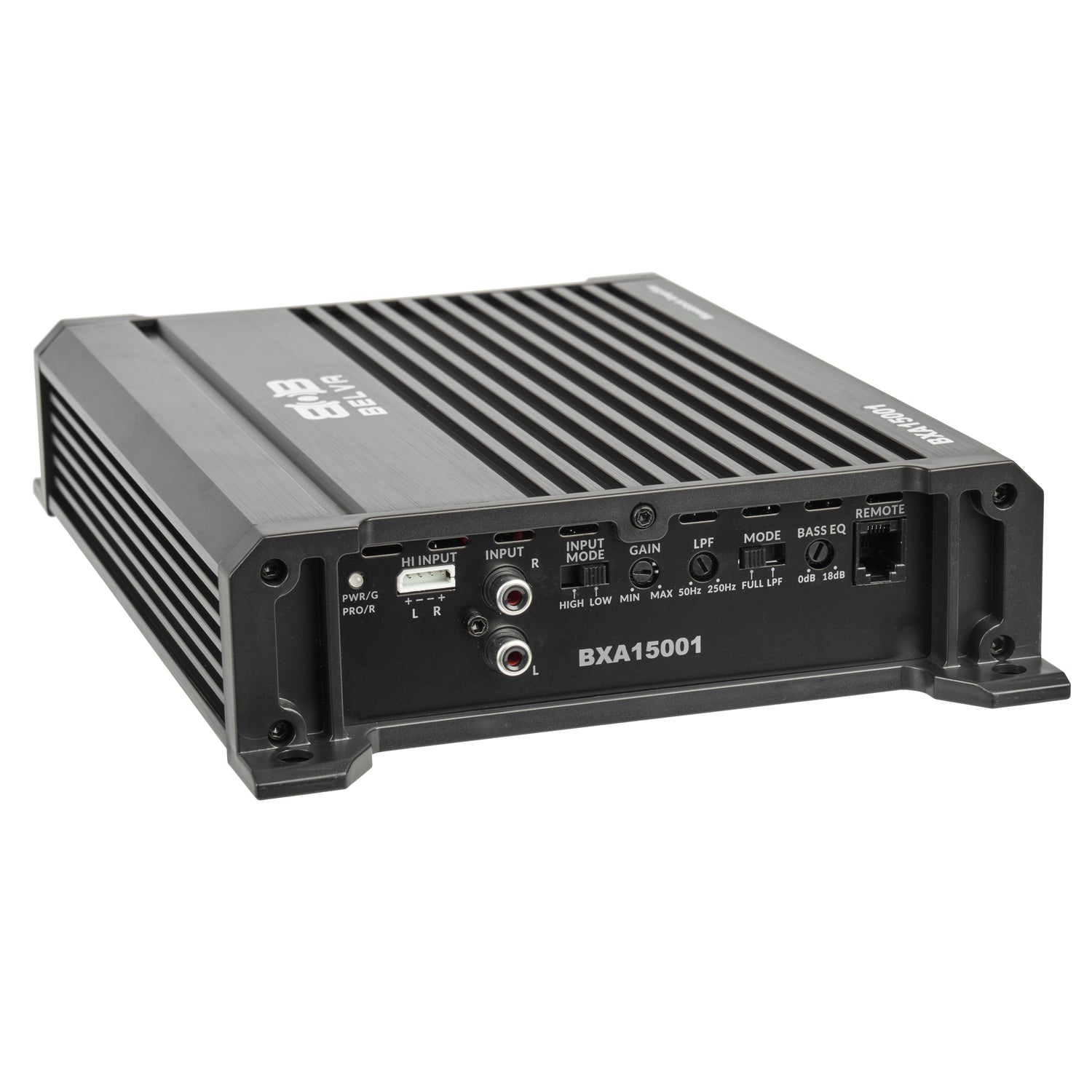

- Belva BX Series Class A/B 2 ohms Stable Monoblock Amplifier
- Power Rating:
- 4 ohms: 750 watts x 1 channels
- 2 ohms: 1500 watts x 1 channels
- Total Peak power output: 1500 watts
- Pulse Width Modulated MOSFET power supply
- LED Power/Protect Light

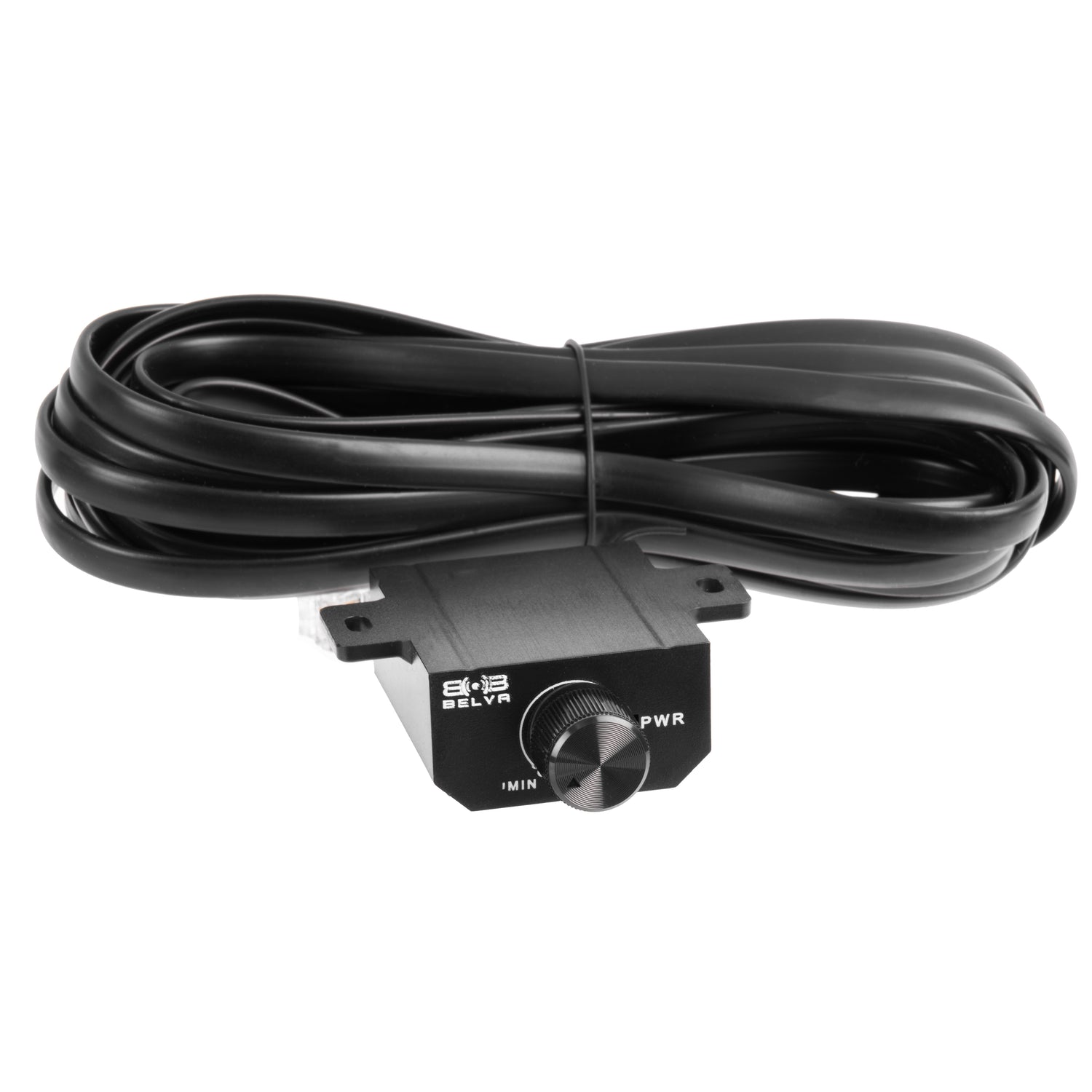

- Wired remote bass level control included
- Soft start turn-on
- Speaker-level (high-level) inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Input sensitivity:
- Low level: 200mV - 8 volts
- Frequency Response: 10 - 30,000 Hz
- Total Harmonic Distortion (THD): 0.05%
- Signal to Noise Ratio: 96 dB
- Variable low-pass filter: 50 - 250 Hz
- Variable Bass Boost: 0 - 18 dB
- Fuse Rating: 30A
- 8 AWG gauge power and ground wiring is recommended for installation
- Dimensions: 7.47" W x 7.87" L x 2.00" H
