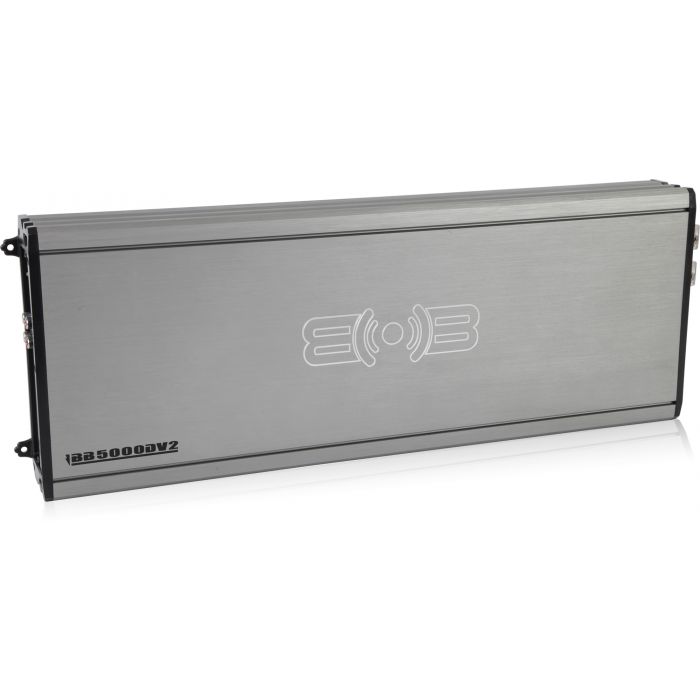

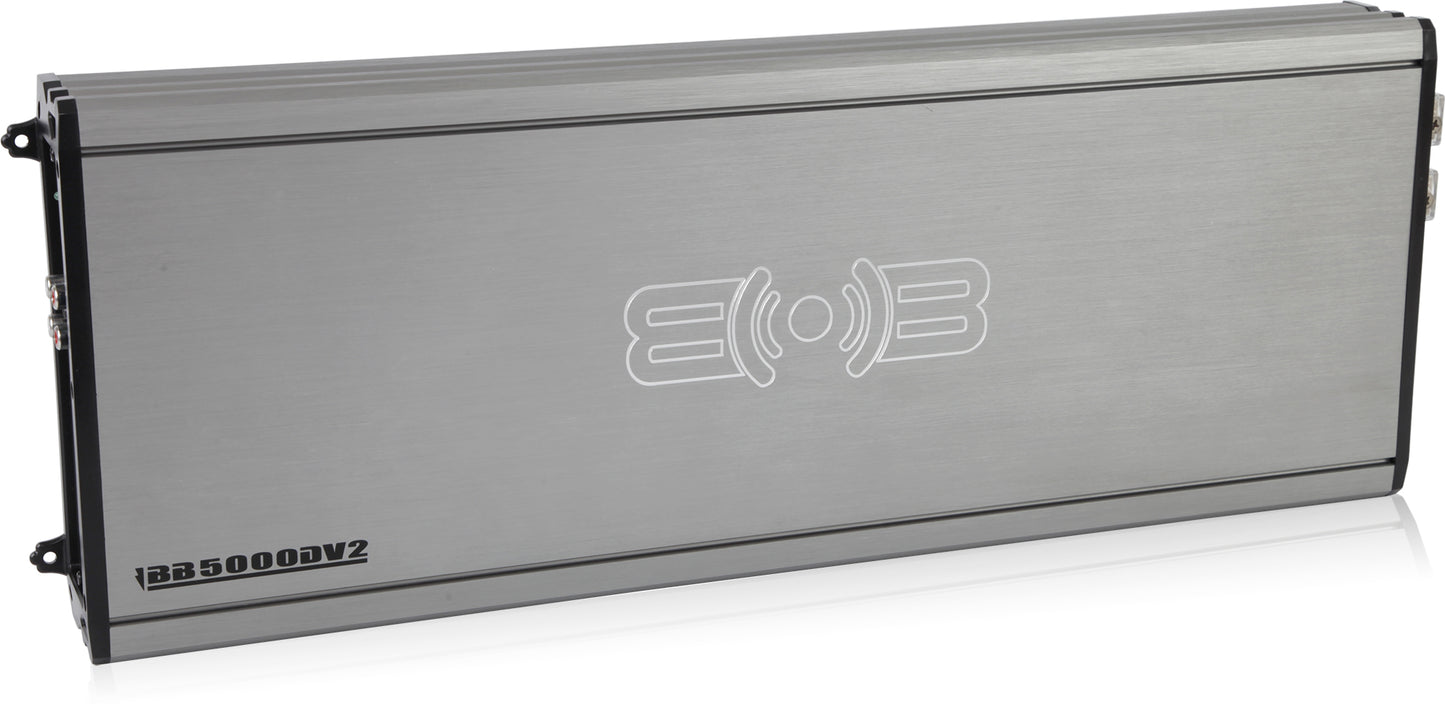

BB5000Dv2 | 5000W Peak BB-Series Class-D Monoblock Amplifier with Bass Remote

General Features:

• Belva BB Series Class-D 1-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 1200 watts x 1 chan.
• 2 ohms: 1800 watts x 1 chan.
• 1 ohm: 3000 watts x 1 chan.
• Max power output: 5000 watts

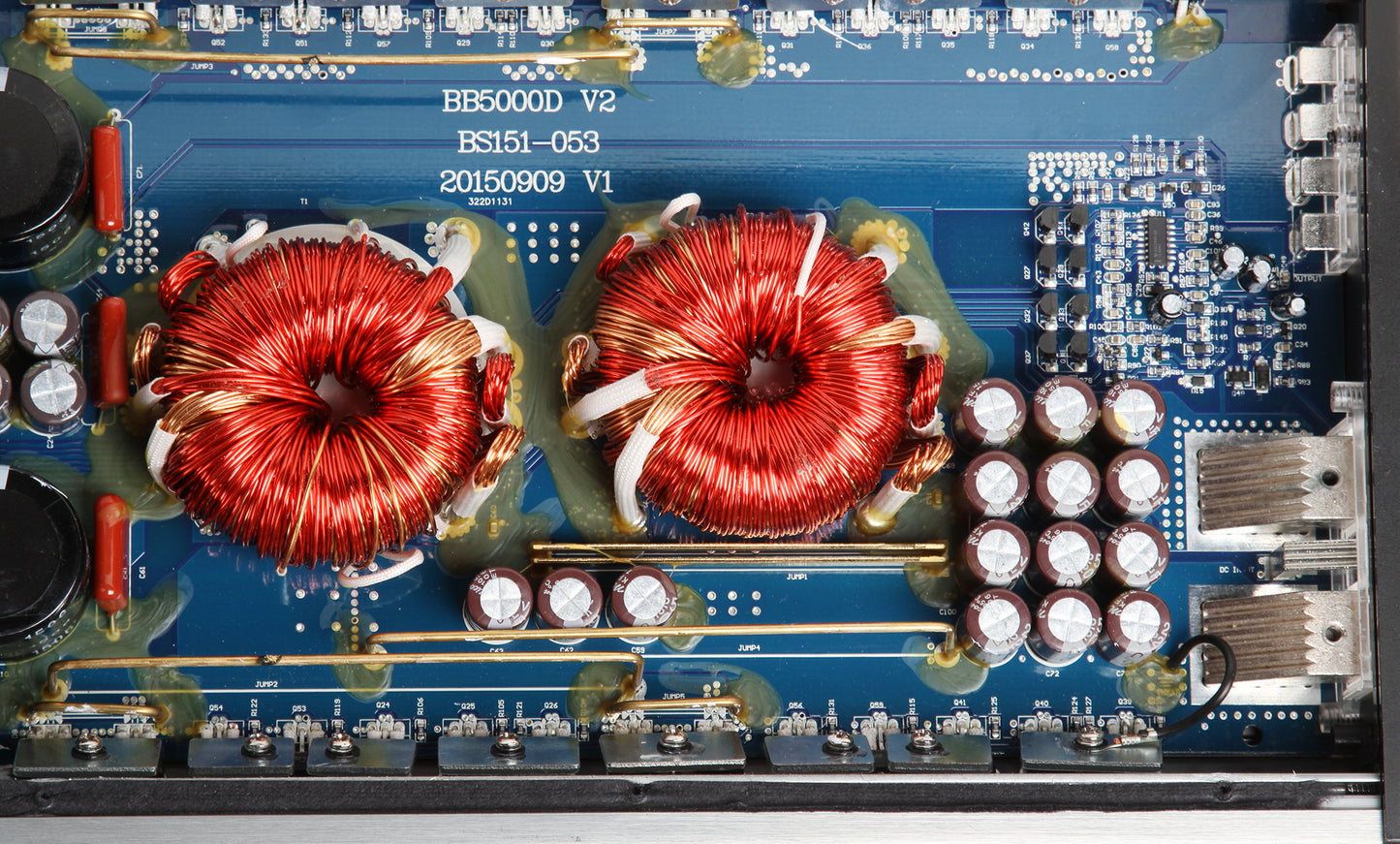

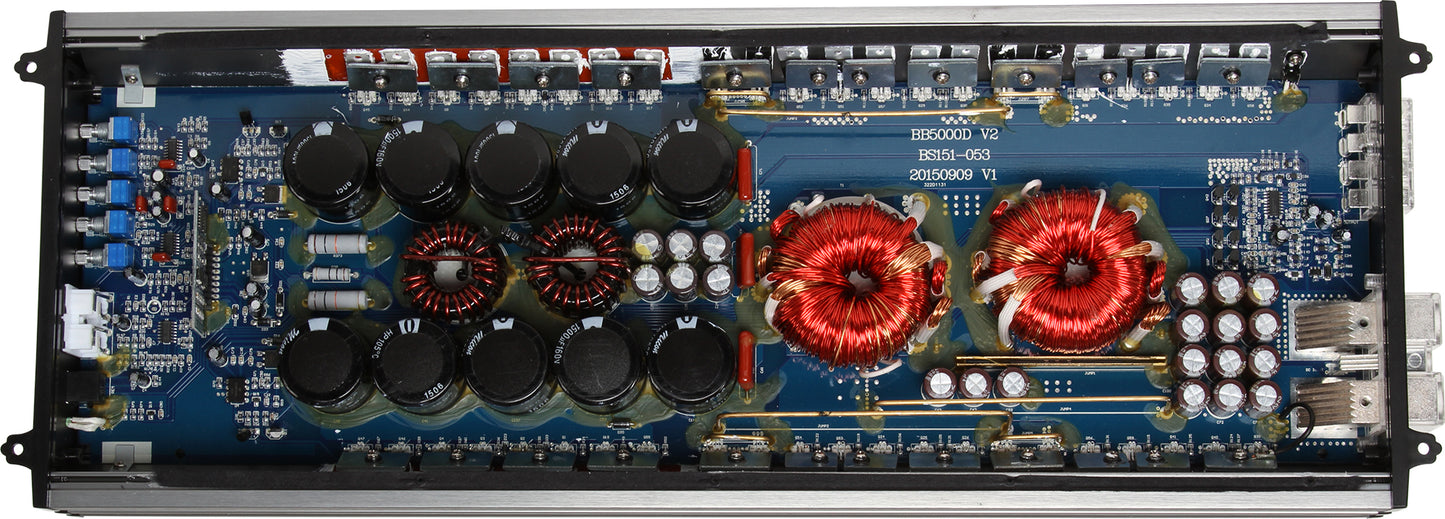

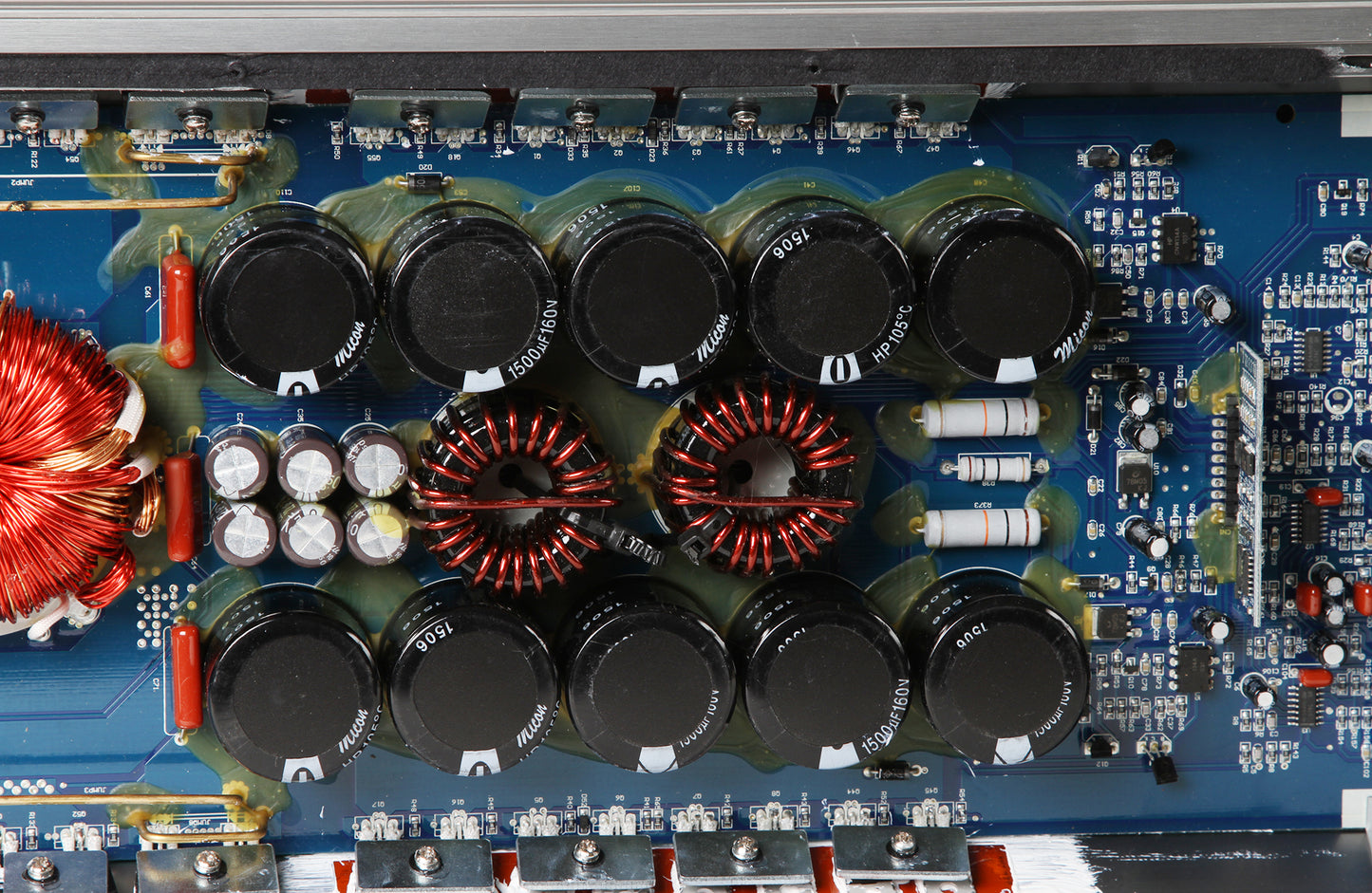

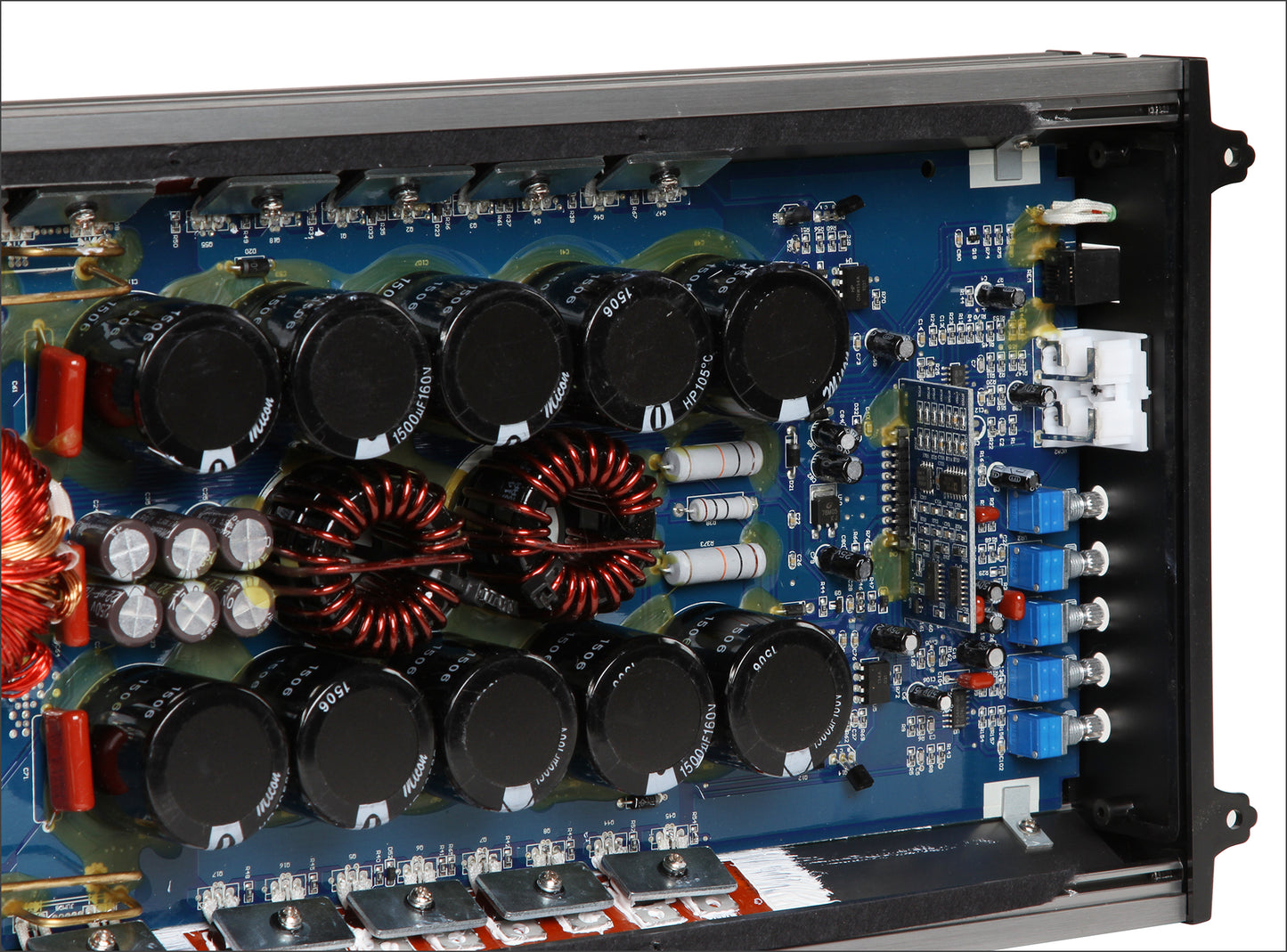

• Pulse Width Modulated MOSFET power supply

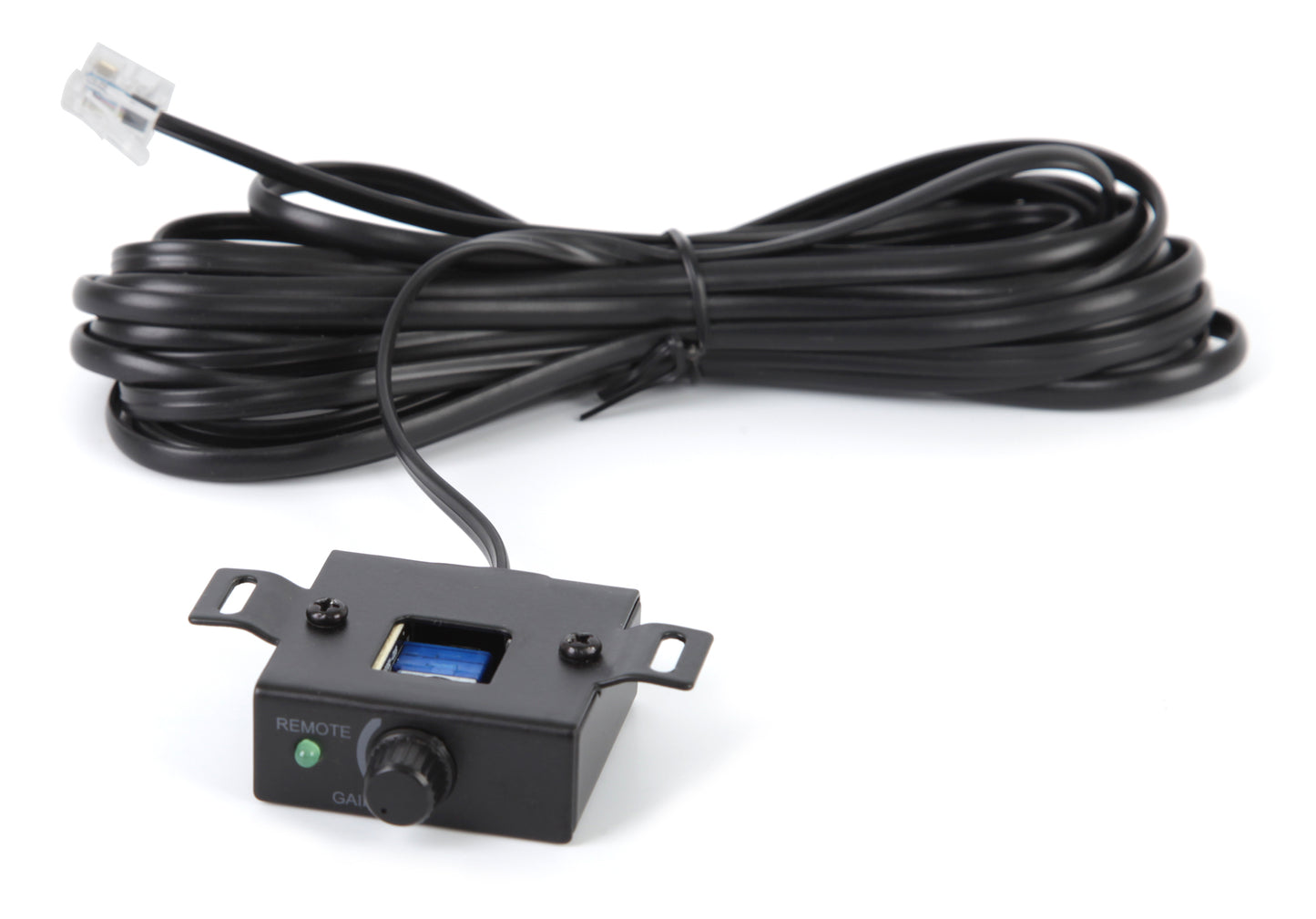

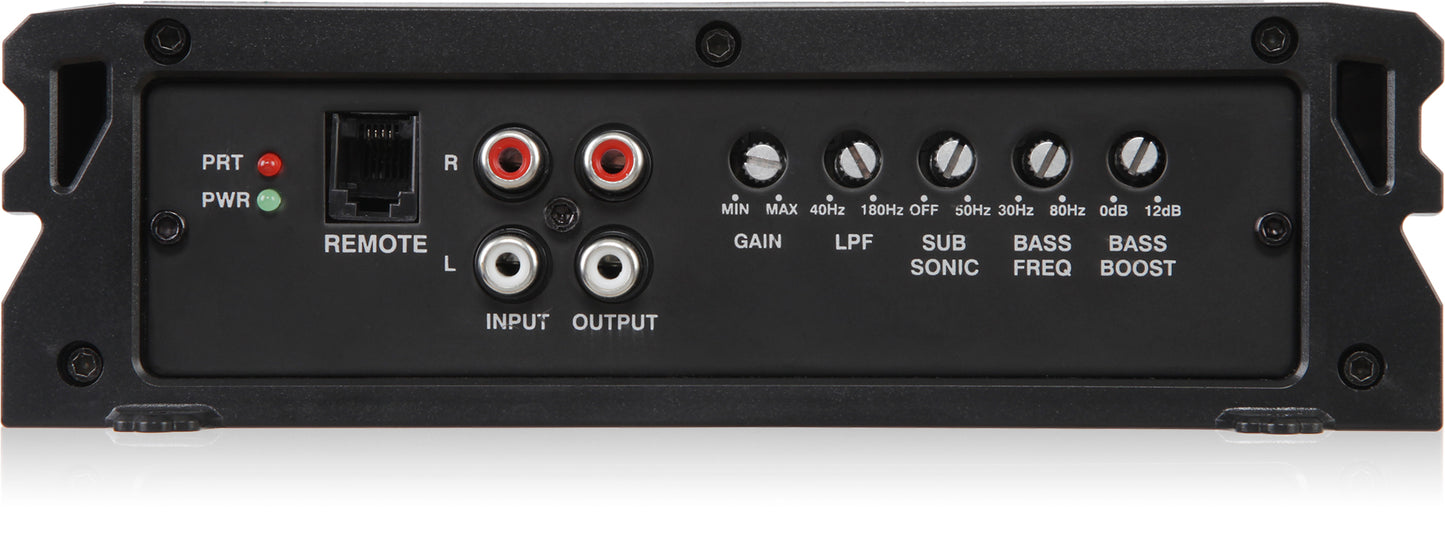

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Input sensitivity:
• Low level: 100mV-6V
• Variable low-pass filter (40-180 Hz, 12 dB/octave)
• Subsonic filter (12 dB variable from 20Hz - 50 Hz)
• Frequency response: 20-30,000 Hz
• 300 Amp ANL Fuse and Holder included

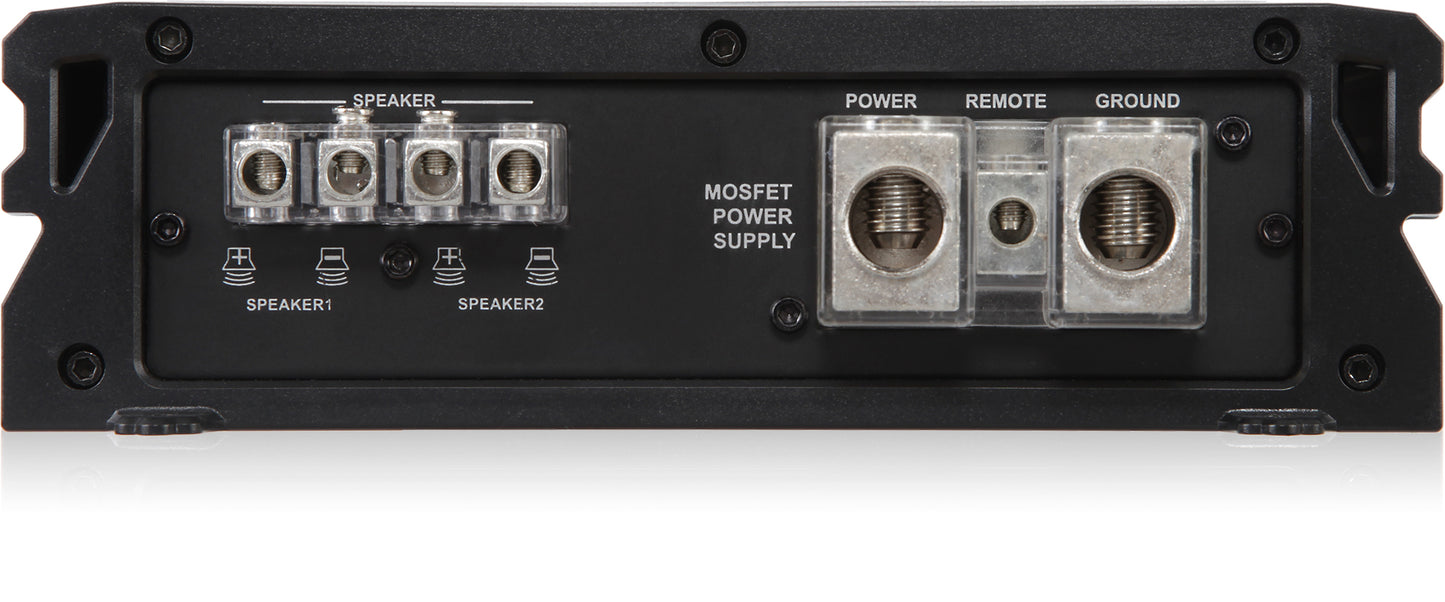

• 1/0 gauge power and ground wiring is required for installation
• Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H
