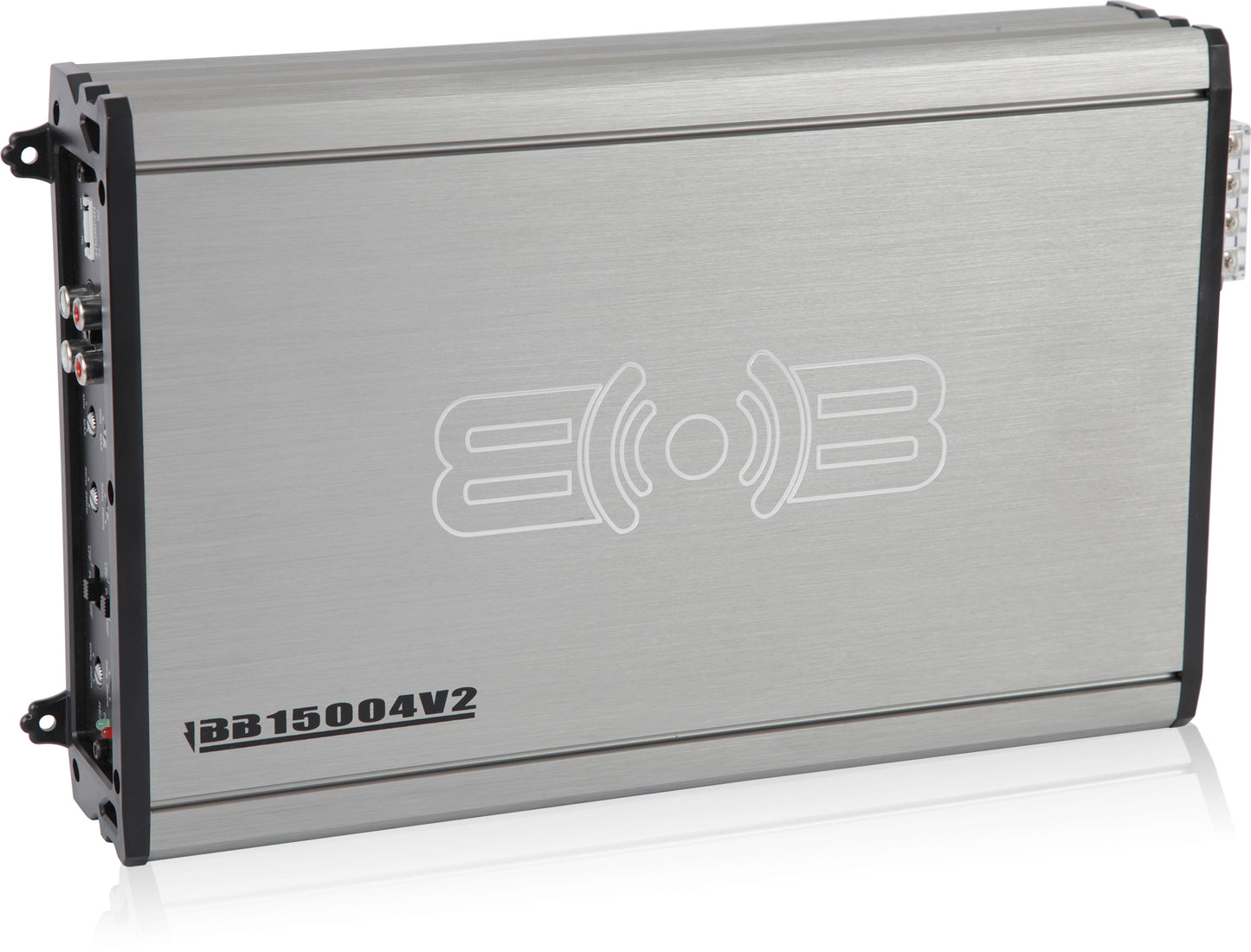

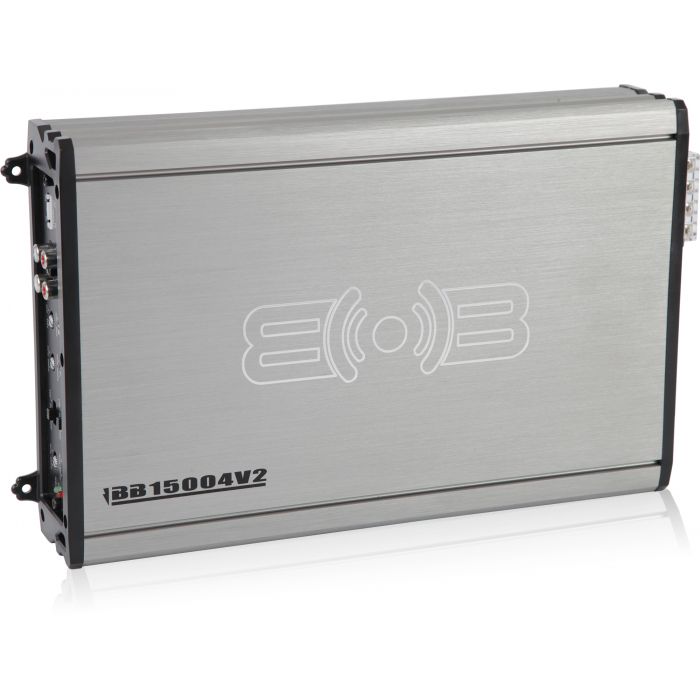

BB15004v2 | 1500W Peak BB-Series Full Range Class A/B 4-Channel Amplifier

Regular price $99.95
Regular price Sale price $99.95
Sale Sold out
Shipping calculated at checkout.

Free Shipping

In-House Experts

Easy Returns

Warranty

Product Details:

  • Belva BB Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 4 chan.
    • 2 ohms: 200 watts x 4 chan.
    • Bridged: 350 watts x 2 chan.
  • Max power output: 1500 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators

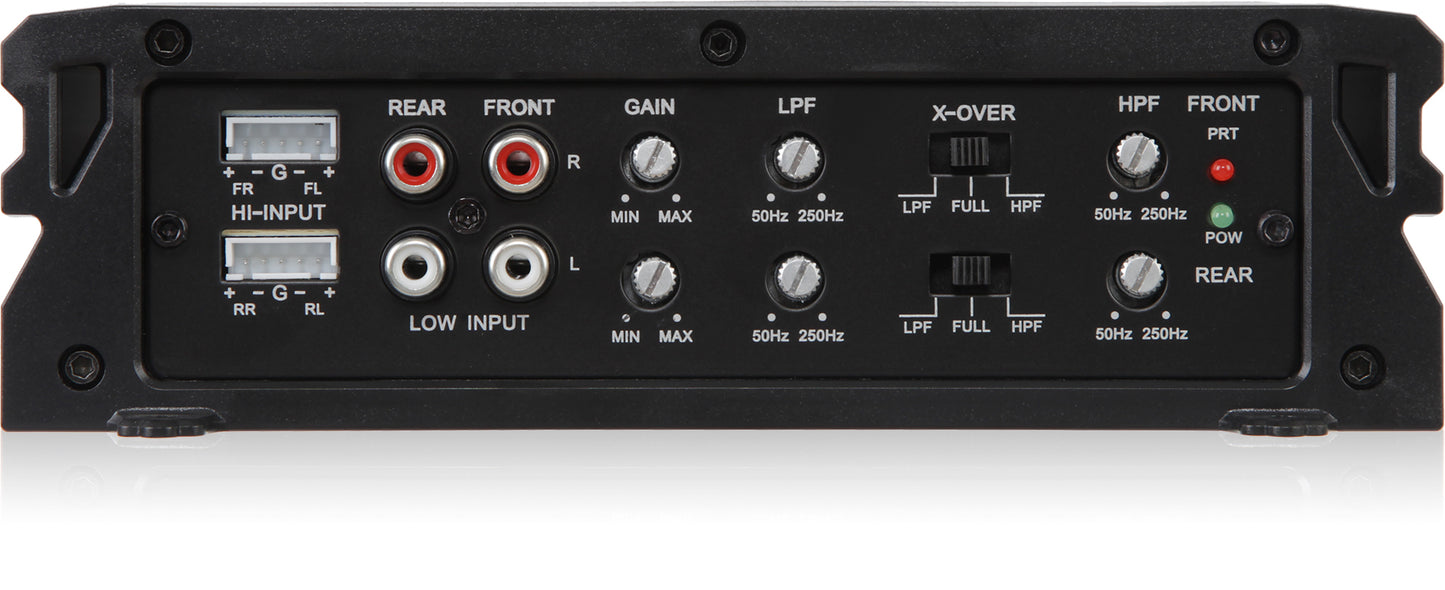

  • High-level speaker inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • Heavy duty aluminum alloy heat-sink
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

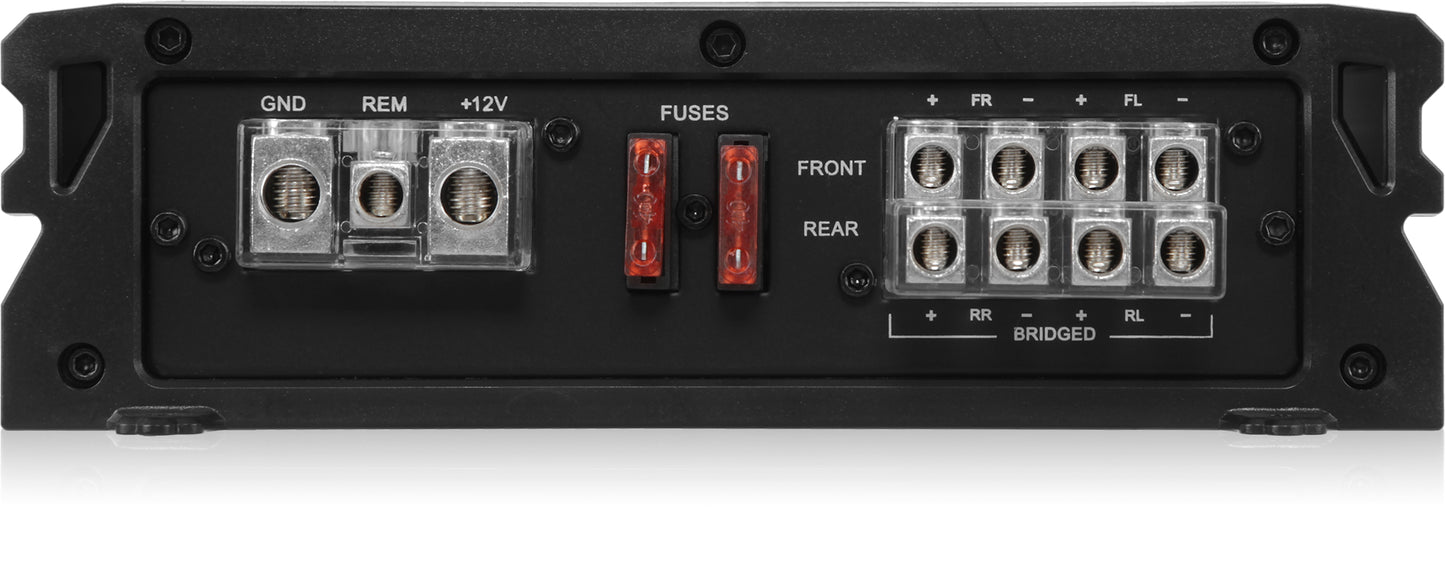

  • Nickel plated RCA, Speaker and Power connections
  • Input sensitivity: 200mV - 5V
  • Selectable crossover modes: LPF / FULL / HPF
  • Variable high-pass filter: 50 - 250 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Total Harmonic Distortion (THD): <1.0%
  • Frequency response: 15-20,000 Hz
  • Signal to Noise Ratio: 86dB @ 1W
  • Fuse Rating: 40 A x 2
  • 4 gauge power and ground wiring is recommended for installation
  • Dimensions: 12.25"W x 8"D x 2.25"H
