Product Details:

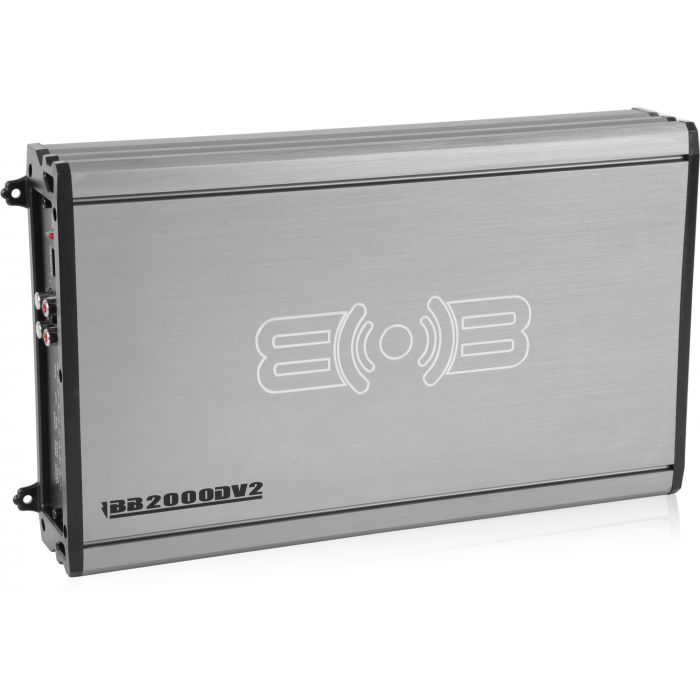

- Belva BB Series Class-D 1-Ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 540 watts x 1 chan.
- 2 ohms: 900 watts x 1 chan.
- 1 ohm: 1200 watts x 1 chan.
- Max power output: 2000 watts
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink
- Input sensitivity: 100mV-6mV
- Frequency response: 20-30,000 Hz
- Variable low-pass filter: 40 - 180 Hz
- Subsonic filter: Off - 50 Hz
- Variable Bass Boost: 0 to +12 dB bass boost at 30 - 80 Hz
- Fuse Rating: 40 A x 3
- 4 gauge power and ground wiring is recommended for installation
- Dimensions: 12-1/2"W x 8-1/4"D x 2-1/4"H
