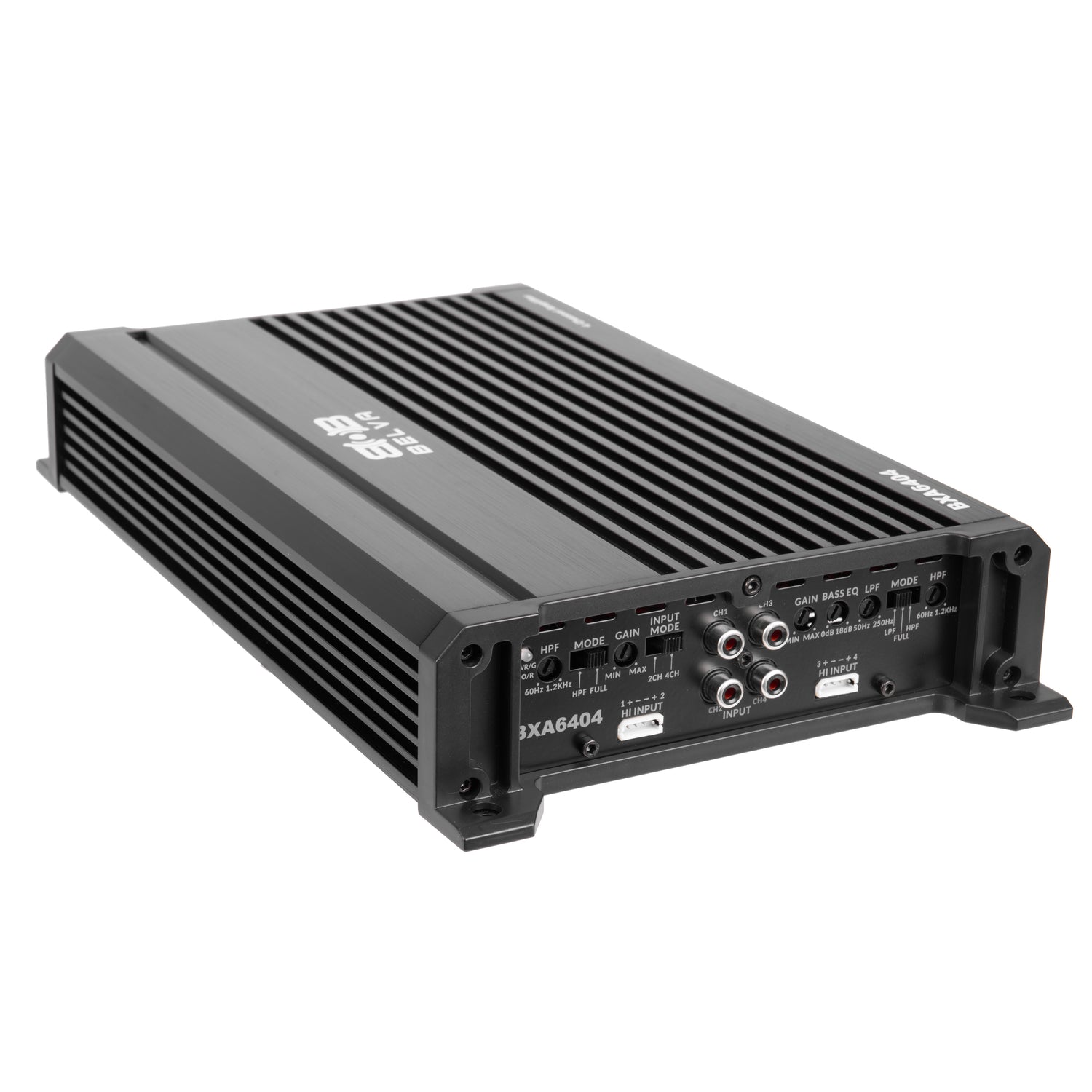

BXA6404 | 640W Peak BX-Series Class A/B 4-Channel Amplifier

Regular price $64.99
Regular price Sale price $64.99
Sale Sold out
Shipping calculated at checkout.

Free Shipping

In-House Experts

Easy Returns

Warranty

Product Details:

  • Belva BX Series Class A/B 2 ohms Stable 4-Channel Amplifier
  • Peak Power Rating:
    • 4 ohms: 80 watts x 4 channels
    • 2 ohms: 160 watts x 4 channels
    • Bridged, 4 ohms: 320 watts x 2 channels
  • Total power output: 640 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 200mV - 8 volts
  • Frequency Response: 10 - 30,000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 96 dB
  • Variable high-pass filter: 80 - 1,200 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 50A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.48" W x 11.02" L x 2.00" H
