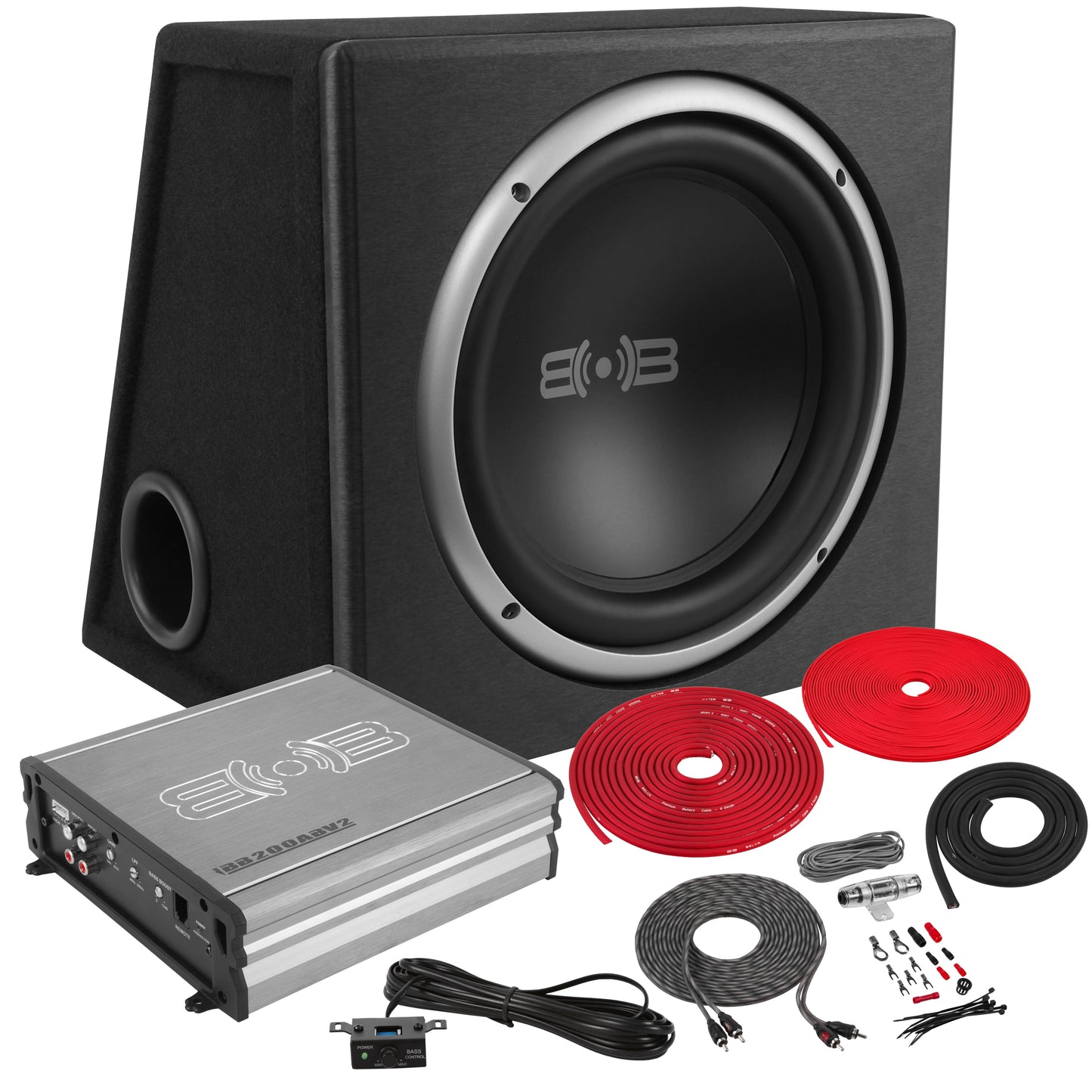

Package Details:
- Single 12" Loaded Ported Subwoofer Enclosure
- Preloaded with a single 12" subwoofer
- Class A/B Amplifier with Bass Knob
- Complete 8 Gauge Wiring Kit
- Works with both Factory and Aftermarket Audio Systems
Subwoofer Details:
- 12" Belva Subwoofer
- Power Handling:
- Peak: 600 watts
- Impedance: 2-Ohm SVC
- Polypropylene cone
- Durable rubber surround
- 1.5" black aluminum voice coil
- 37 oz. ferrite magnet motor structure

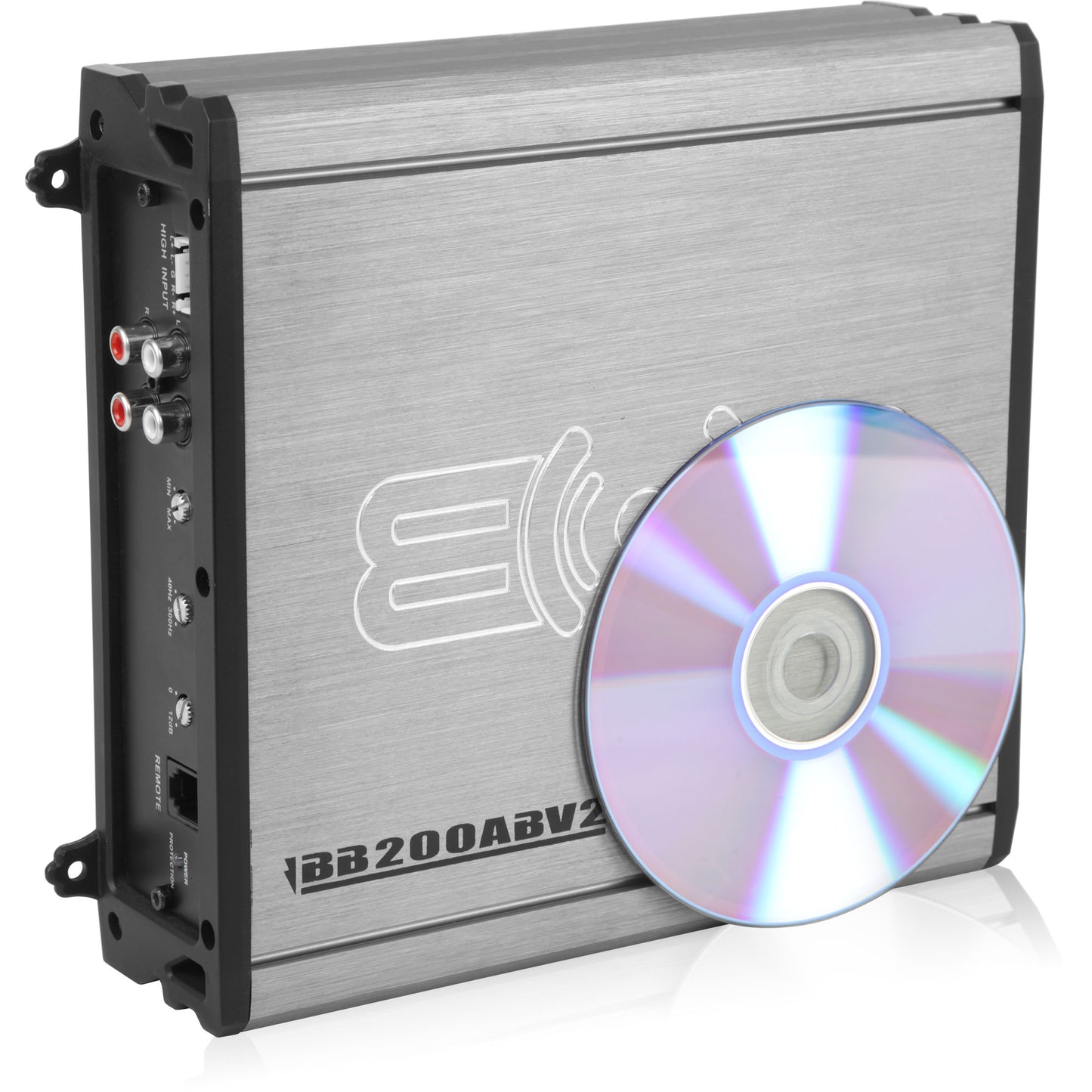

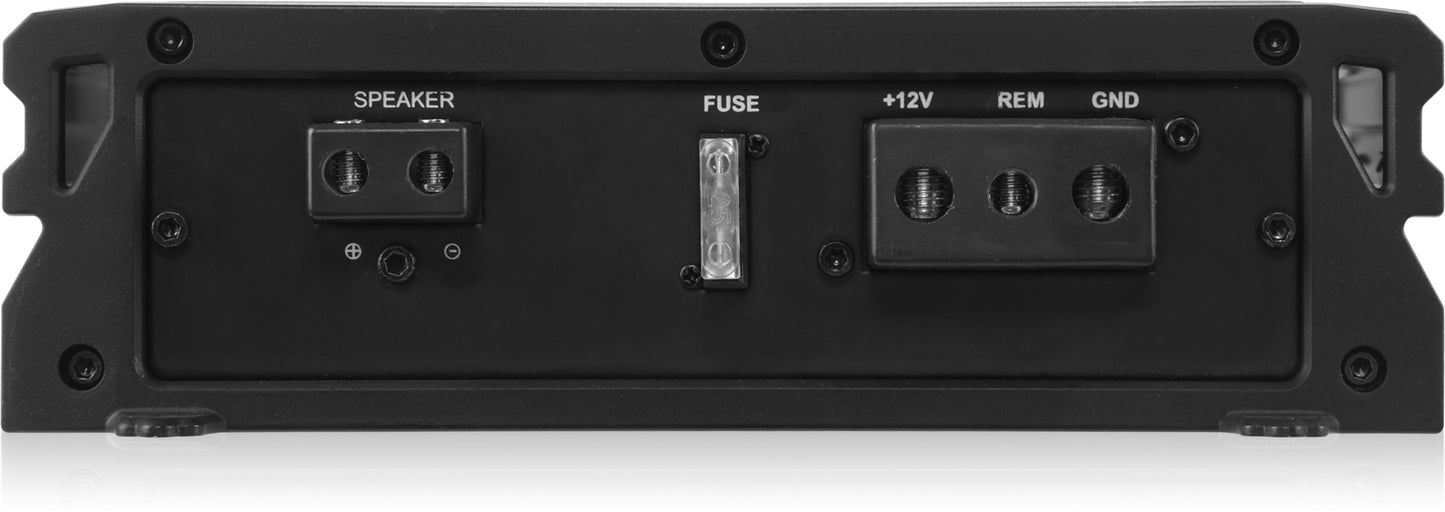

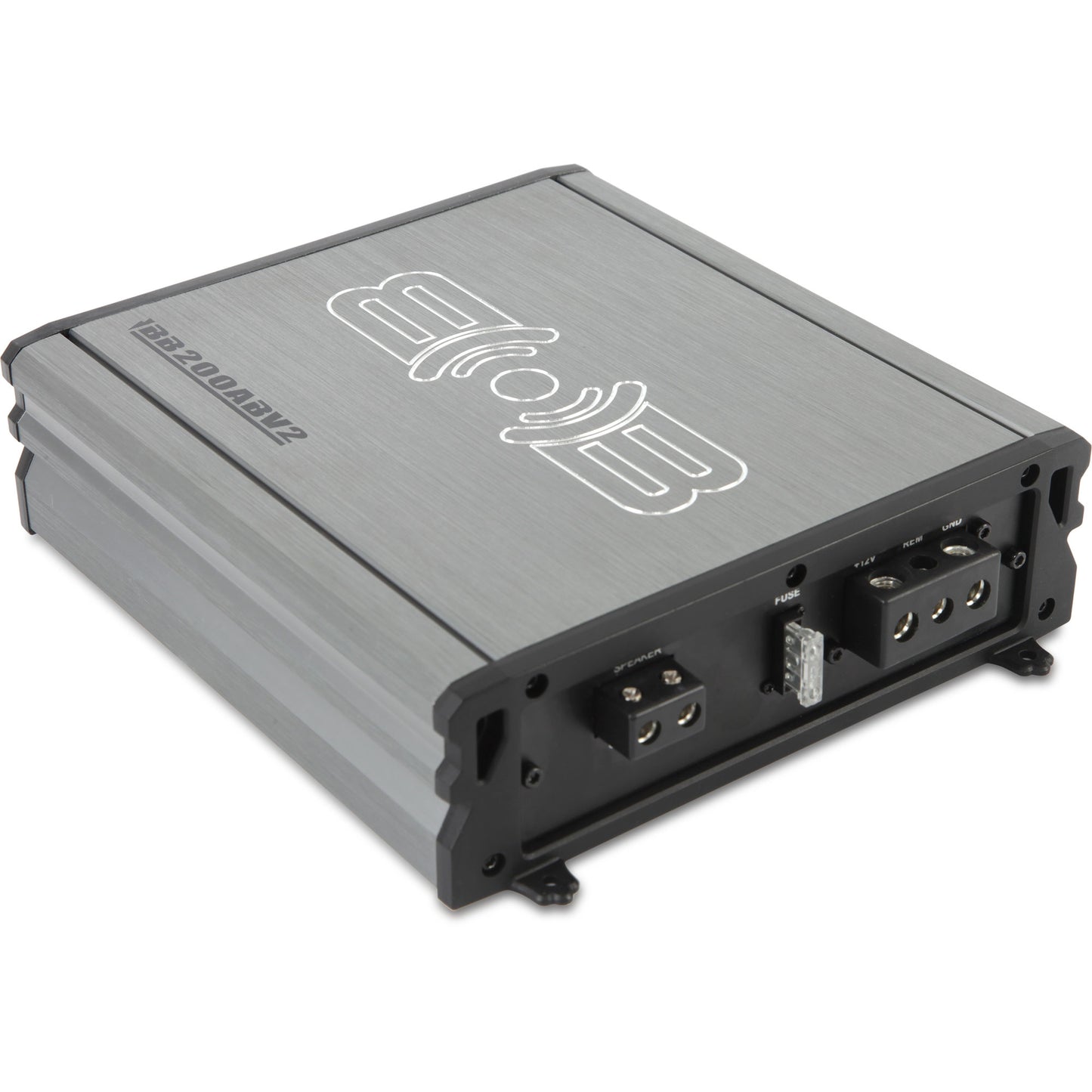

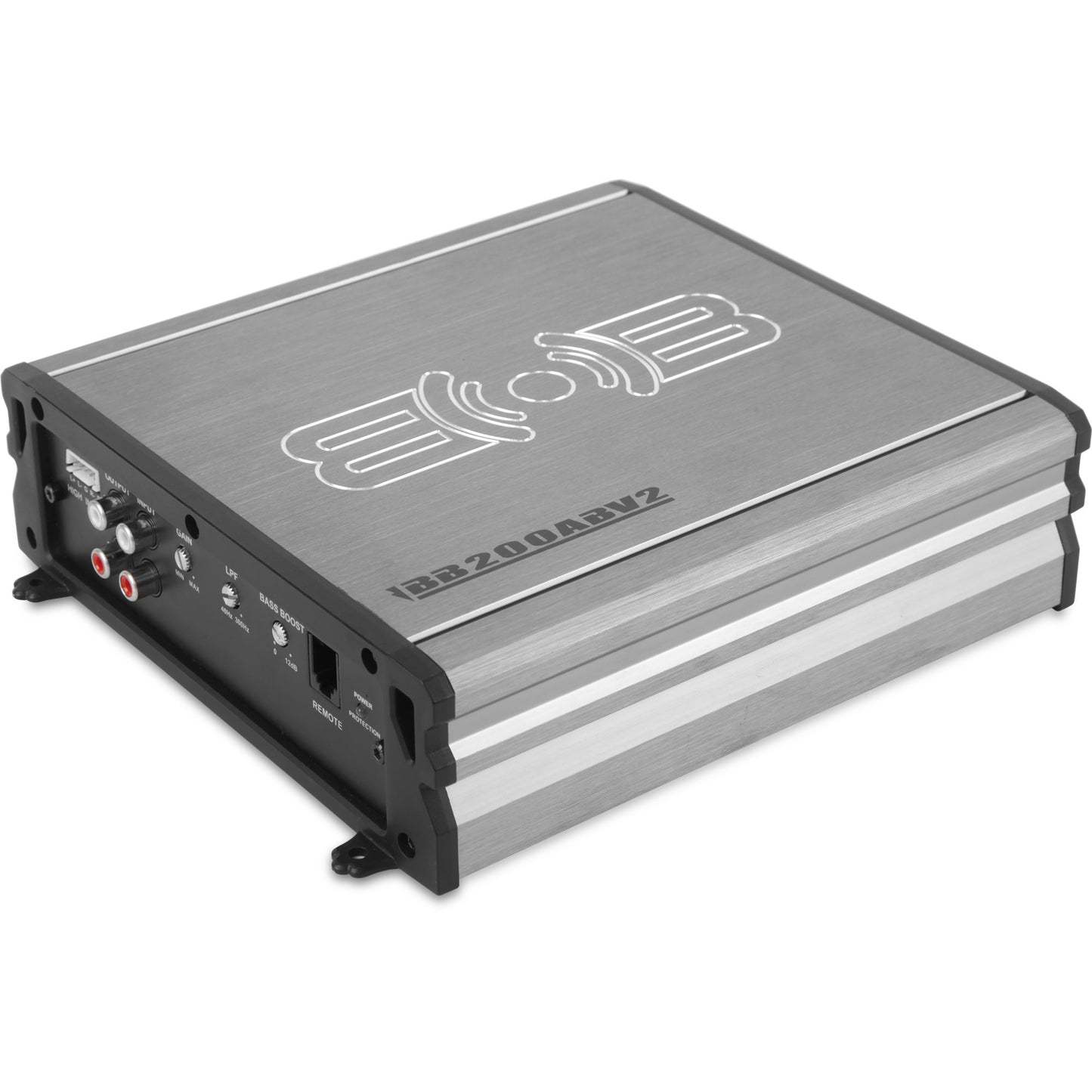

Amplifier Details:
- Belva BB200ABv2
- Class-A/B 2-Ohm Stable Monoblock Amplifier
- Max Power Rating:
- 4 ohms: 200 watts x 1 chan.
- 2 ohms: 500 watts x 1 chan.

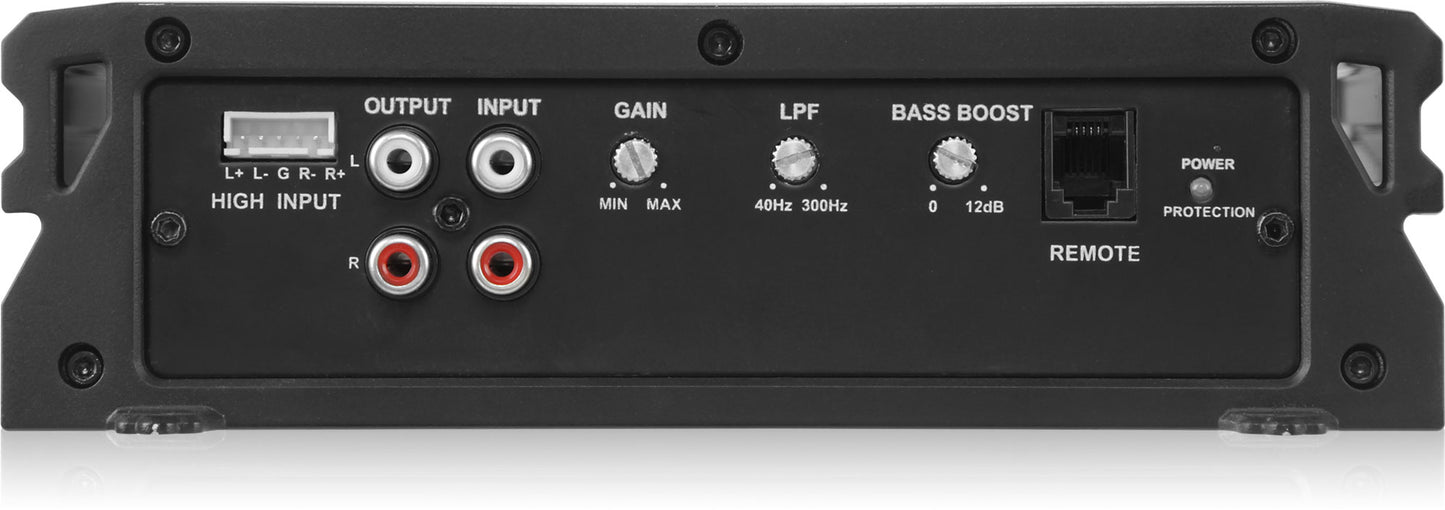

- Adjustable gain
- LPF: 40-300Hz
- Bass Boost: +0-12DB
- One pair of preamp outputs

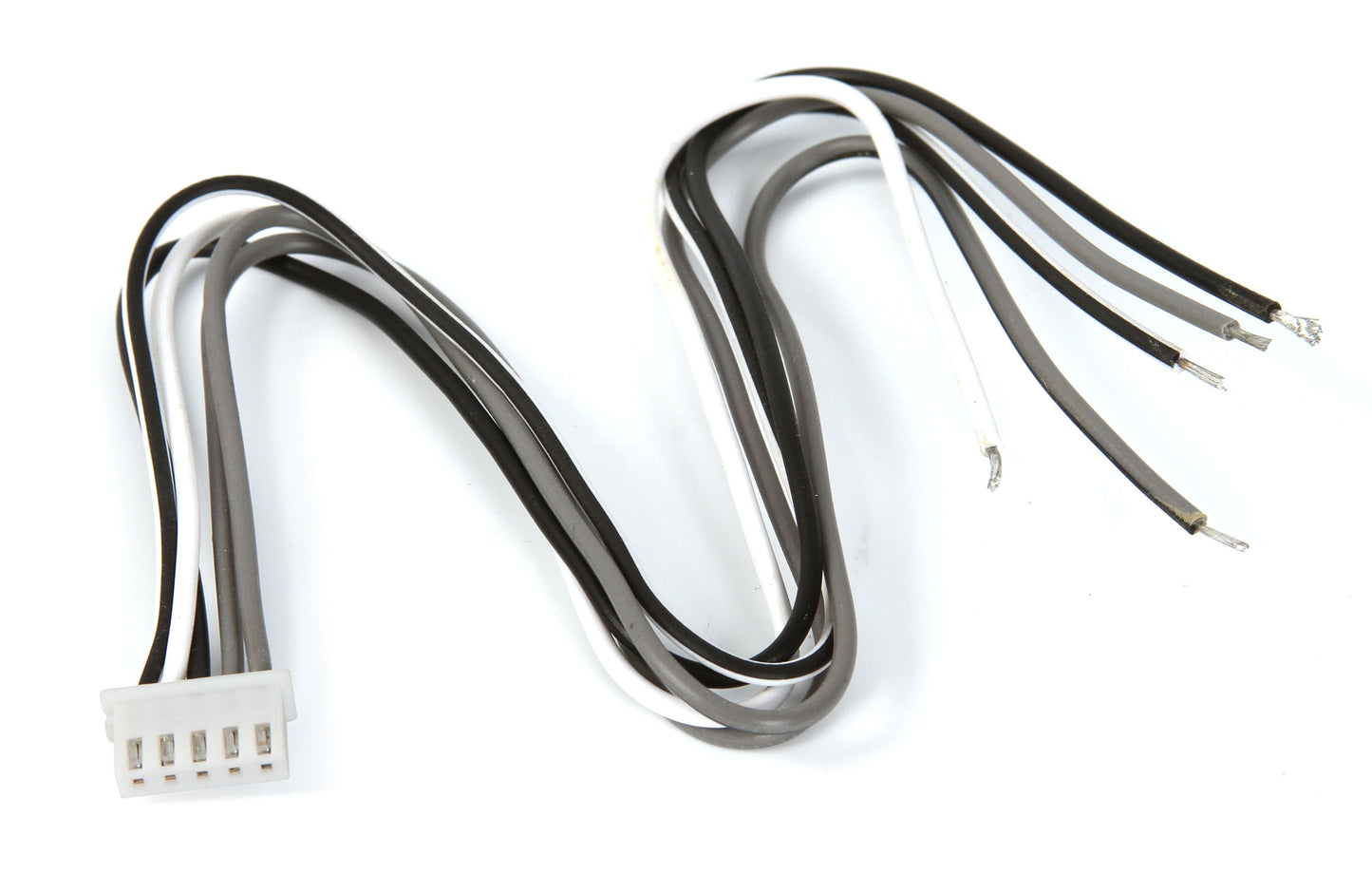

- High level/speaker level inputs

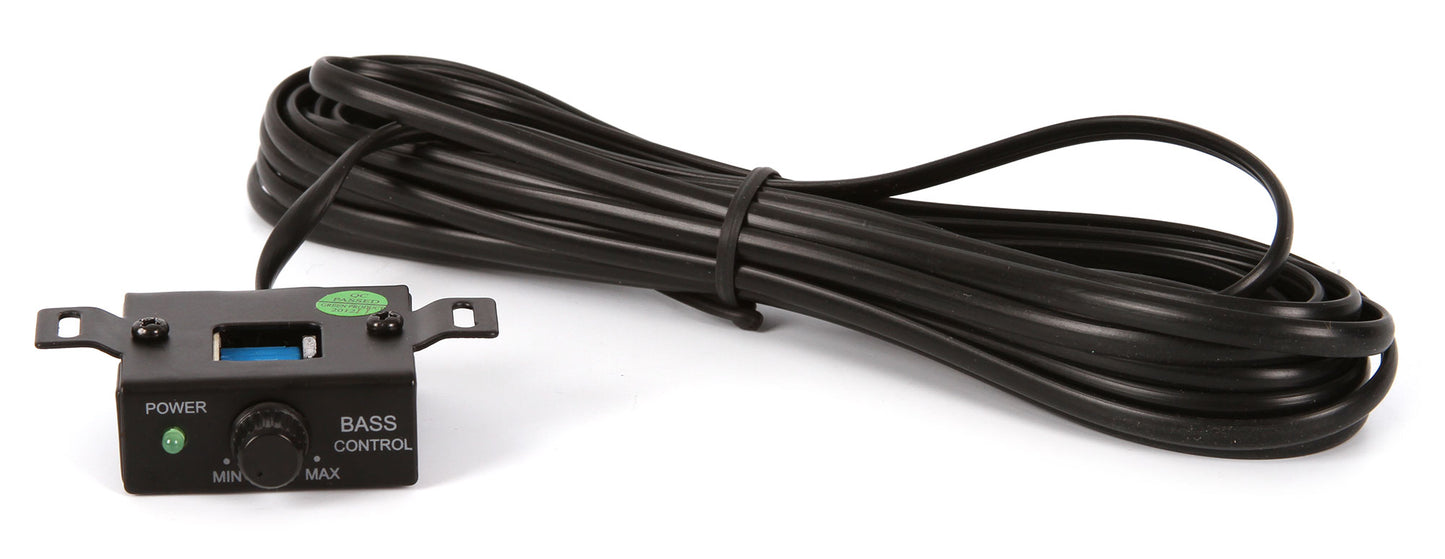

- Remote bass knob included
- 25A fuse

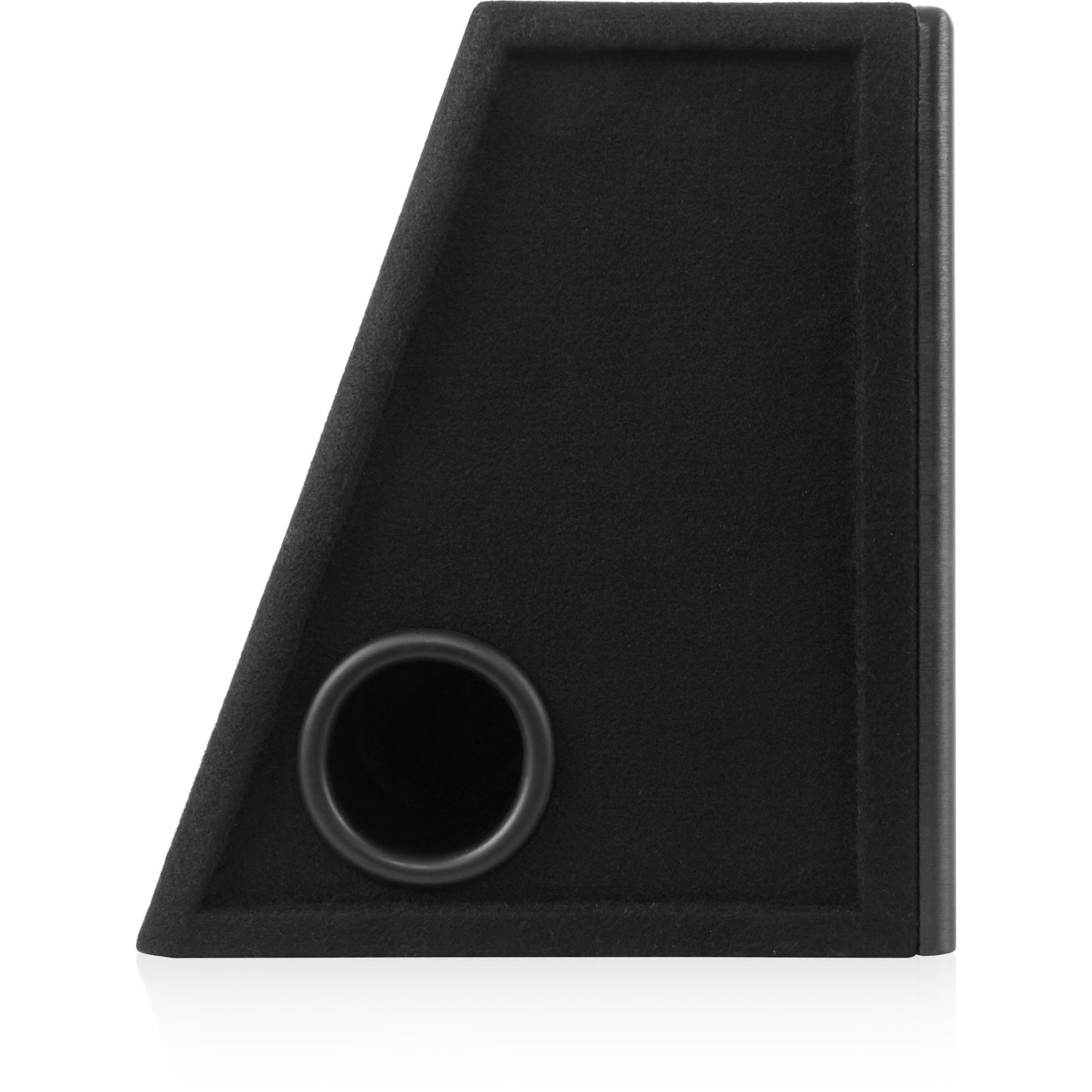

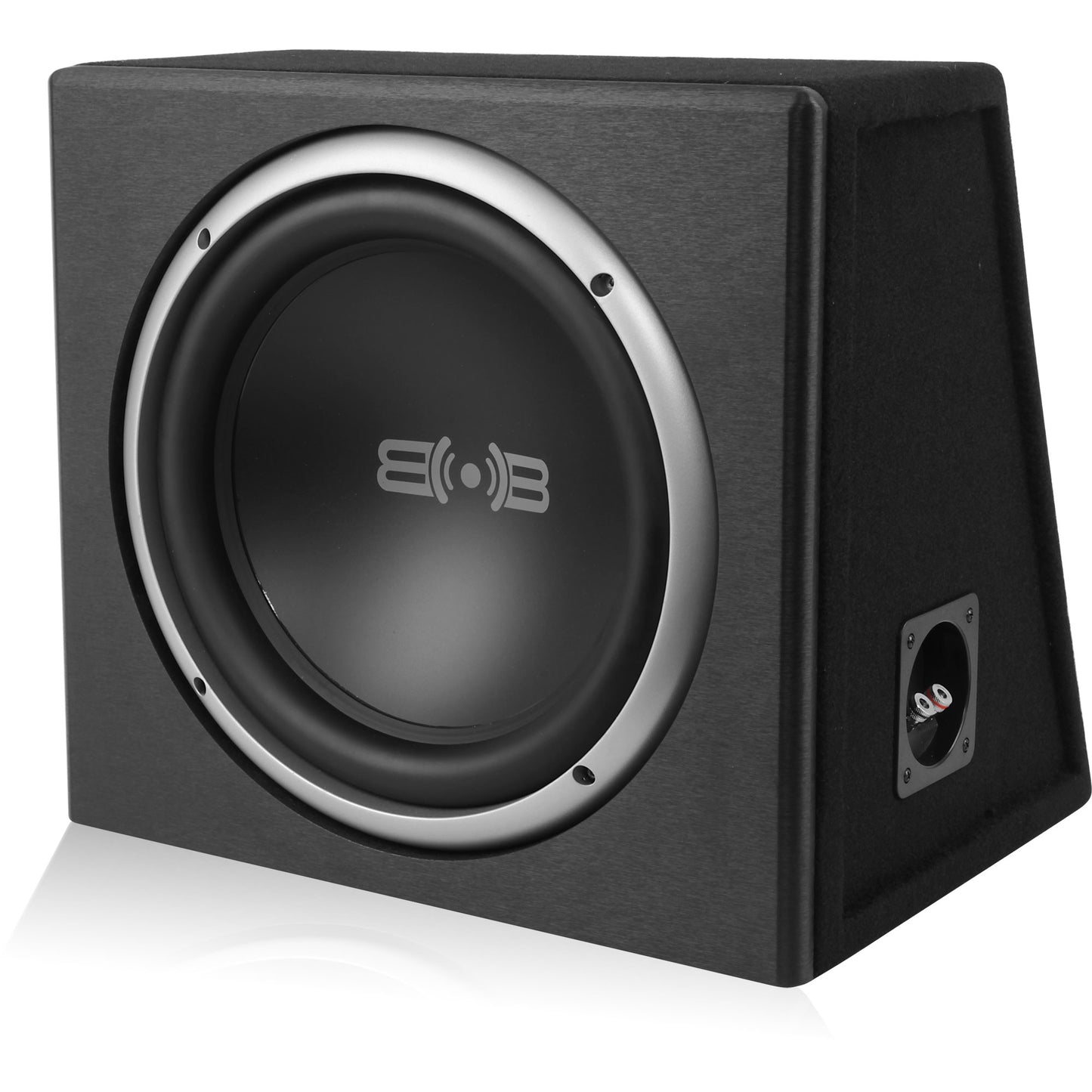

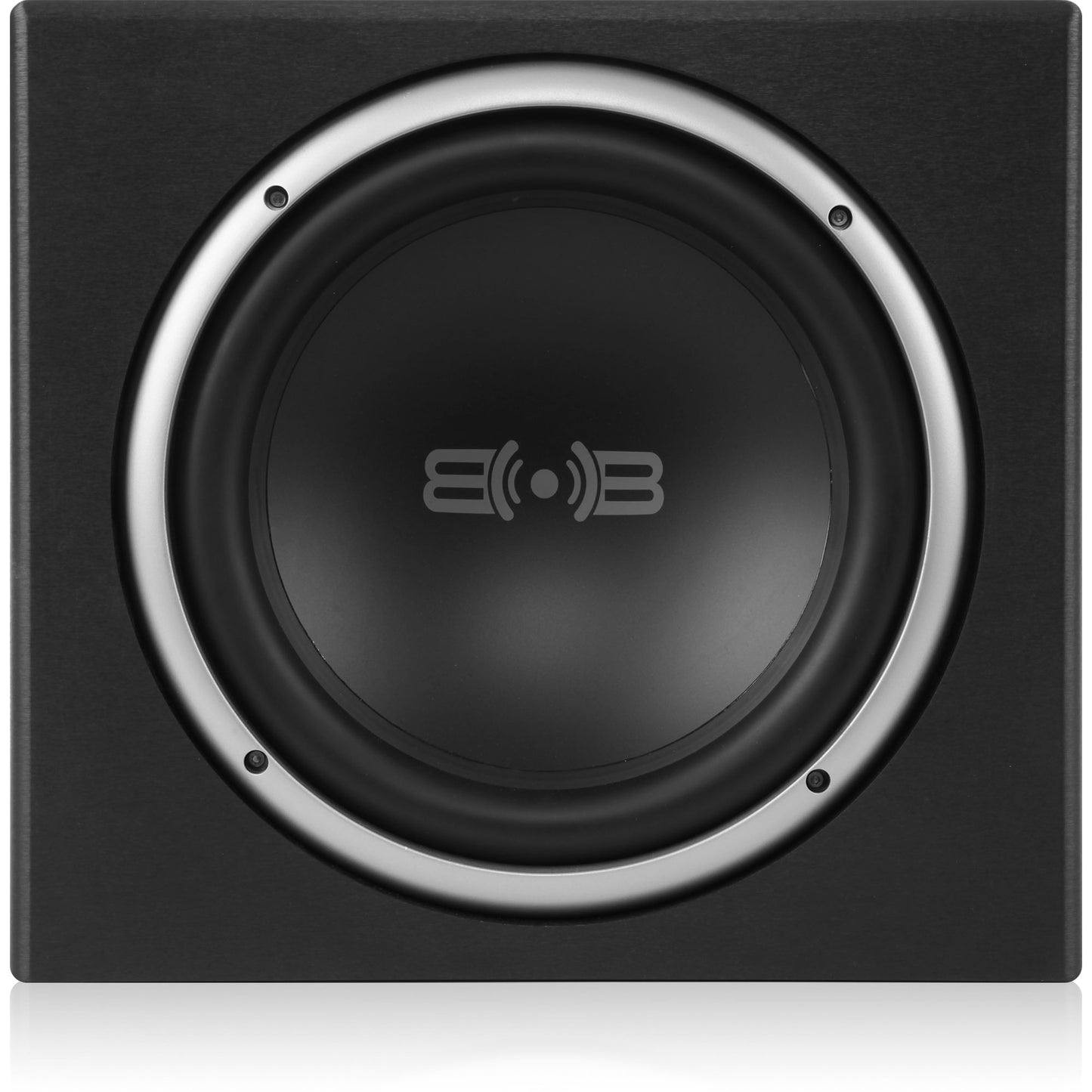

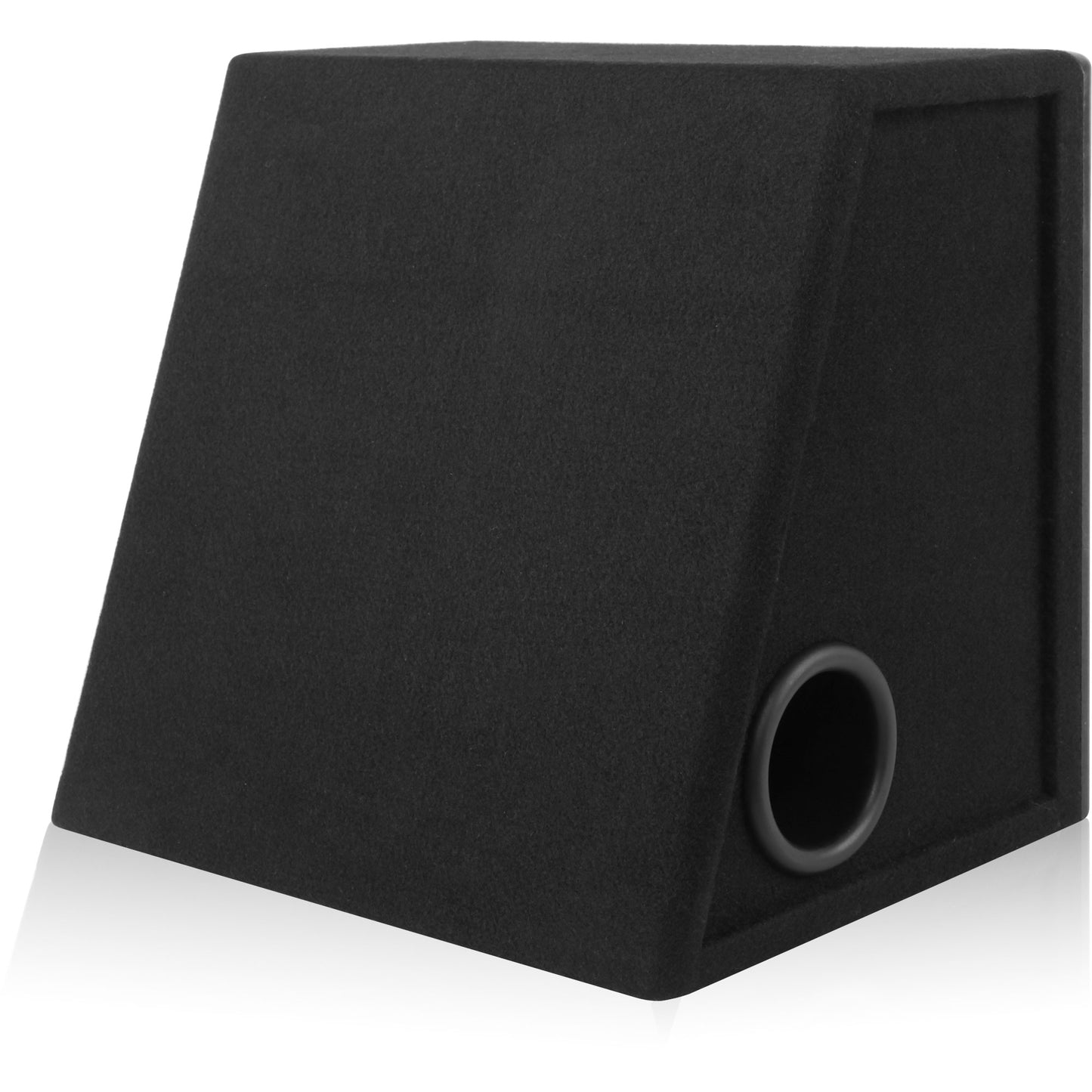

Enclosure Details:
- Single 12" Ported Subwoofer Enclosure
- Preloaded with Belva subwoofer
- 3/4 MDF (Medium Density Fiberboard) Construction
- Each Piece is CNC Cut Exact to Specification

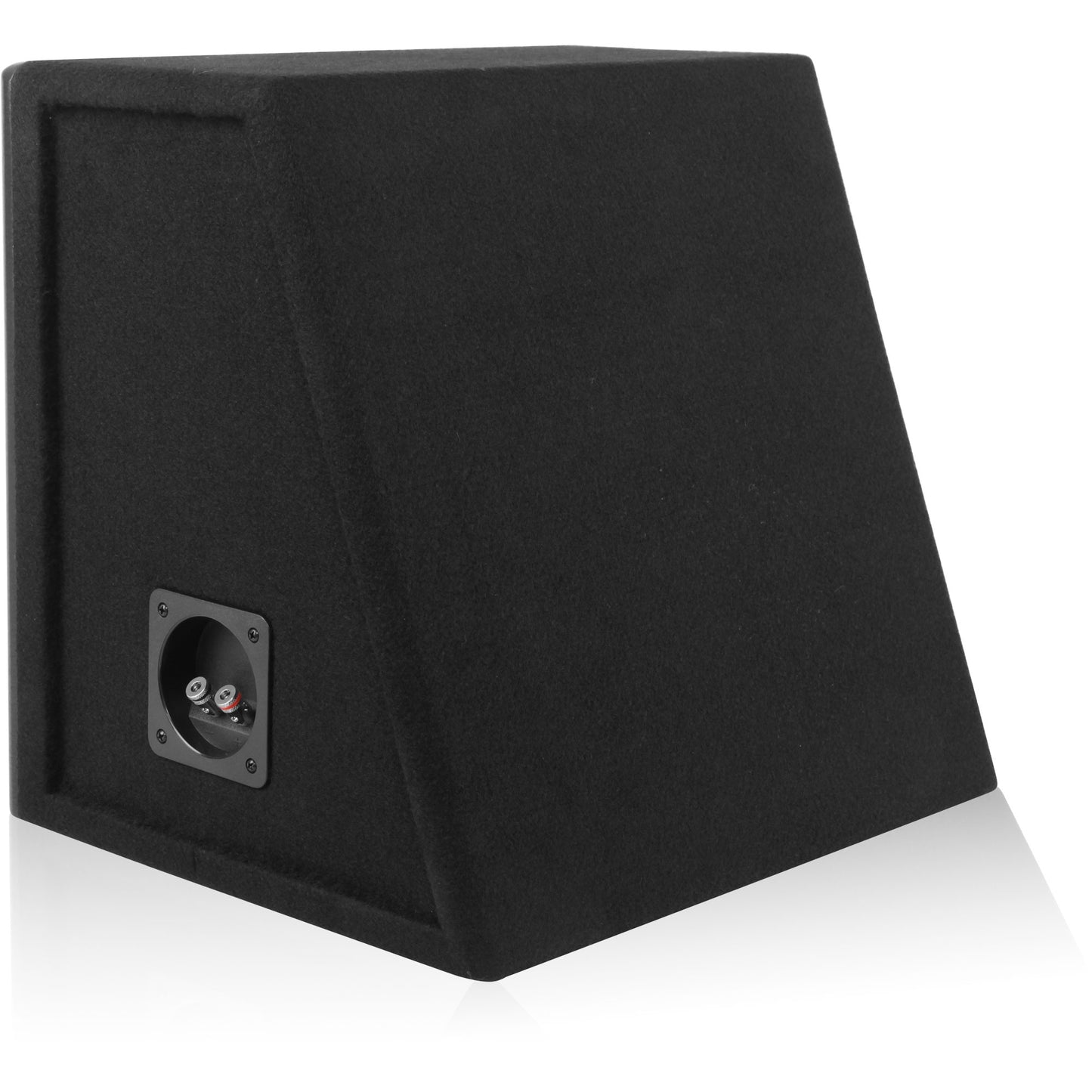

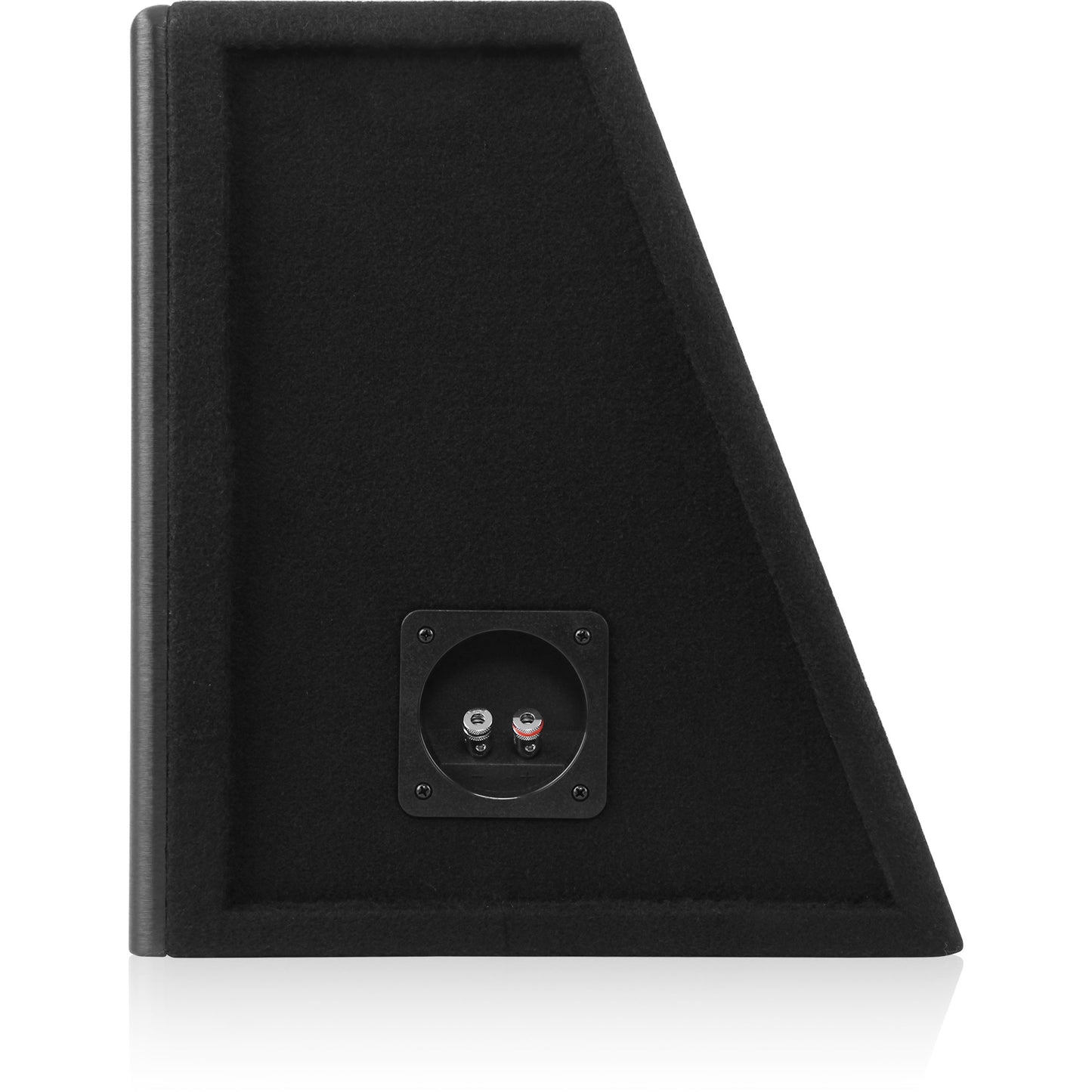

- Spring Loaded push terminals
- Dimensions: 14.6" W x 11.81" H x 5.12" Top Depth x 9.45"Base Depth

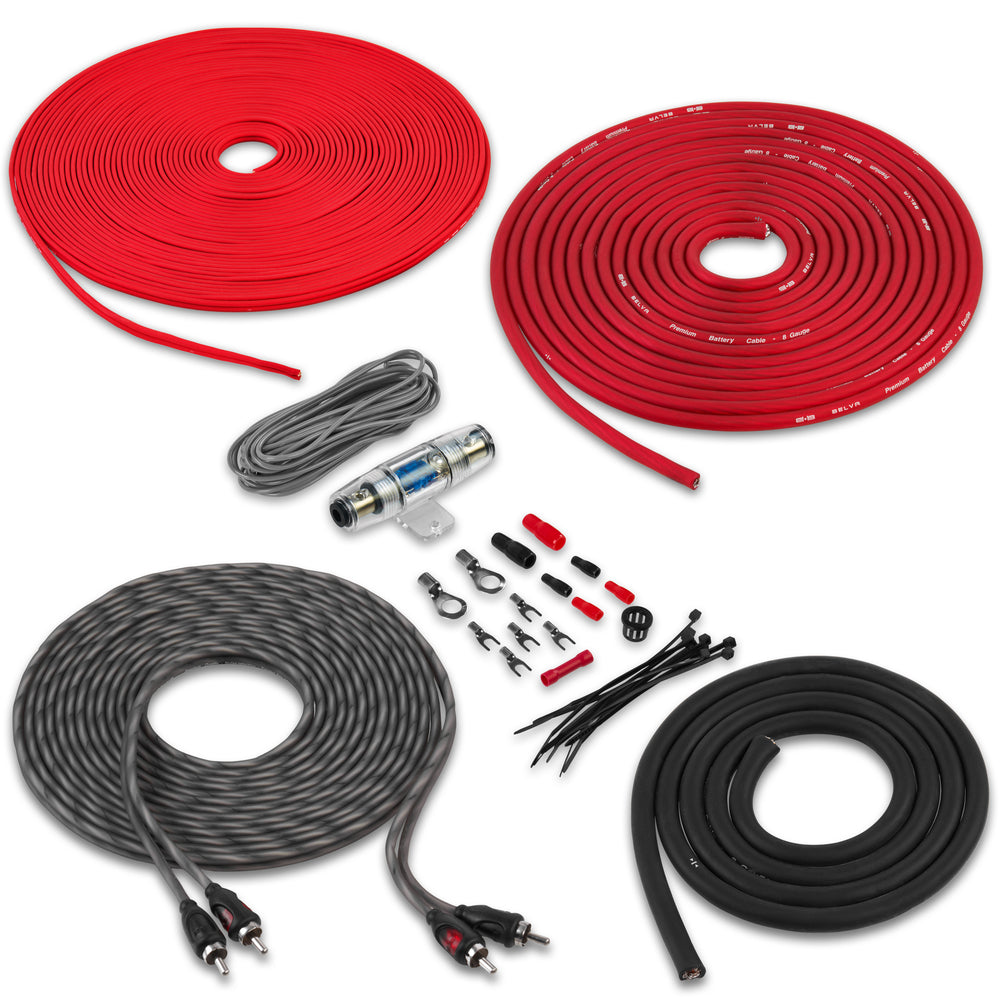

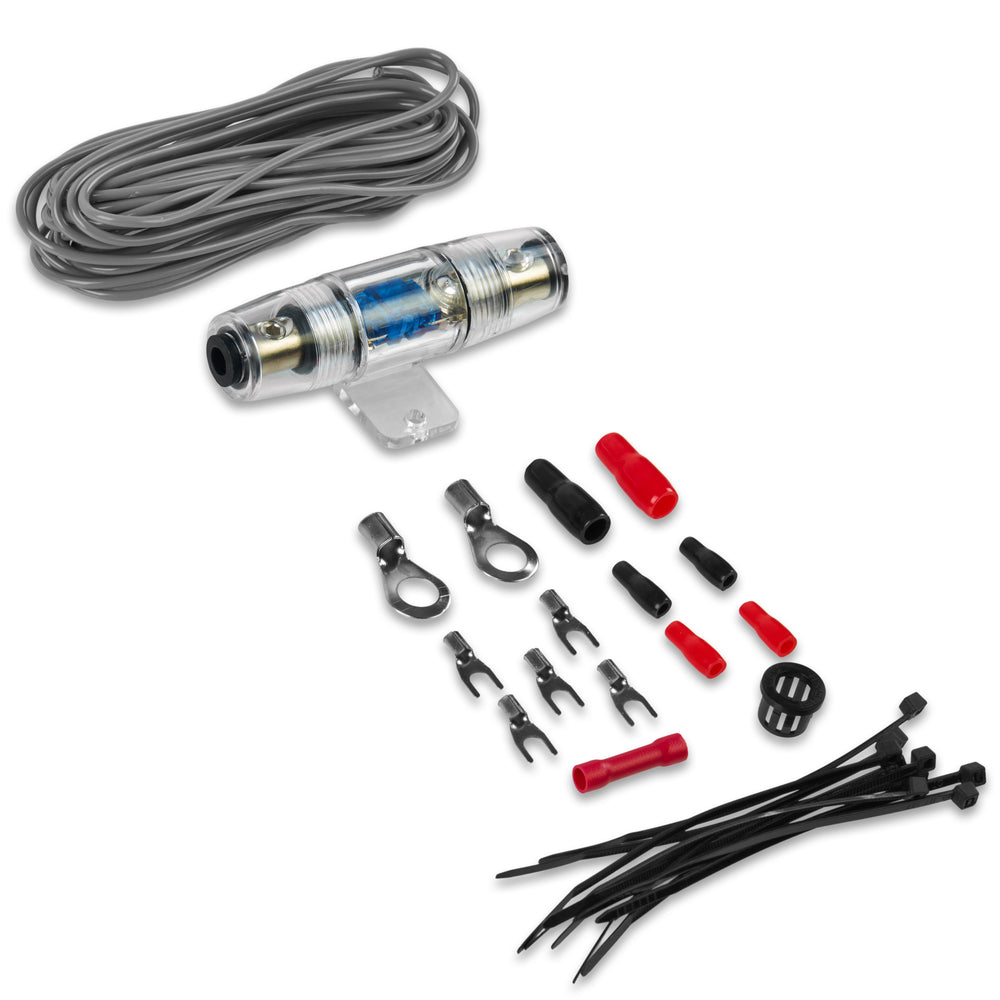

Amp Kit Details:
- Complete 8 Gauge 2-Channel Amplifier Installation Kit
- Designed for car audio systems up to 600 watts RMS
- Kit includes:
- 17 ft. (5.2 meters) Red 8 gauge power wire
- 3 ft. (.91 meters) Black 8 gauge ground wire
- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
- 20 ft. (6.1 meters) 16 Gauge Speaker cable
- One MINI-ANL Fuse Holder with a 60 amp fuse
- One Black rubber firewall grommet
- One 8 Gauge Red chrome plated ring terminals
- One 8 Gauge Black chrome plated ring terminal
- Three 18 Gauge Red Spade terminal
- Two 18 Gauge Black Spade terminal
- One 18 Gauge Red butt connector
- Ten 4" Black zip ties
